Off-line converter IC overcomes vampire power problems in lighting
The VIPer0P claims to be the first in the world to provide a smart way of managing the wake-up function in lighting, in white goods and industrial equipment.
The long-running battle to minimize power sucked in by equipment in standby mode (vampire power) has driven worldwide adoption of proposals such as the IEA1 initiatives to reduce standby power used by appliances to less than 1 W in 2010 and 0.5 W in 2013. Today, the most advanced power-supply technologies are capable of driving down standby power consumption below 5 mW, which is rounded to zero according to the IEC standard for household and office appliances.
Although regulations are driving down standby power per appliance, the number of appliances in use globally is increasing. ST’s VIPer0P IC helps reduce wasted power and CO2 emissions by enabling effective zero-power standby in appliances such as clothes dryers, washing machines, dishwashers, coffee makers, and microwaves. The chip can also be used in lighting controls, industrial appliances, and air conditioners. By introducing a patented smart-management capability not offered by any other converter in the market, VIPer0P allows the appliance to be woken from standby via a touchscreen or remote control thereby enhancing convenience for users.
VIPer0P is able to provide standby power for the system host microcontroller while in idle mode. This allows the system to be woken via the main-appliance user interface, such as the touchscreen or a remote controller. There is no need for a dedicated high-voltage mechanical switch to take the appliance out of standby. VIPer0P consumes less than 5mW in idle mode (at 230Vac supply). This best-in-class performance is rounded to zero power according to Clause 4.5 of the IEC 62301 standard for household and office appliances.
If a switch is used to control standby, idle power can be further reduced to 4 mW. Switching can be done at Safety Extra-Low Voltage (SELV), hence eliminating bulky high-voltage components.
VIPer0P is an off-line power-converter IC that can be configured as a flyback, buck, or buck-boost switched-mode power supply (SMPS). As the latest member of ST’s high-voltage VIPerPlus series, it integrates an avalanche-rugged Power MOSFET with class-leading breakdown voltage of 800V thereby giving designers greater safety margin to ensure superior reliability. VIPer0P also has comprehensive protection features including short-circuit protection, Vcc clamping, thermal shutdown, and soft-start. The oscillator controlling the switching frequency is jittered to minimize electromagnetic interference.

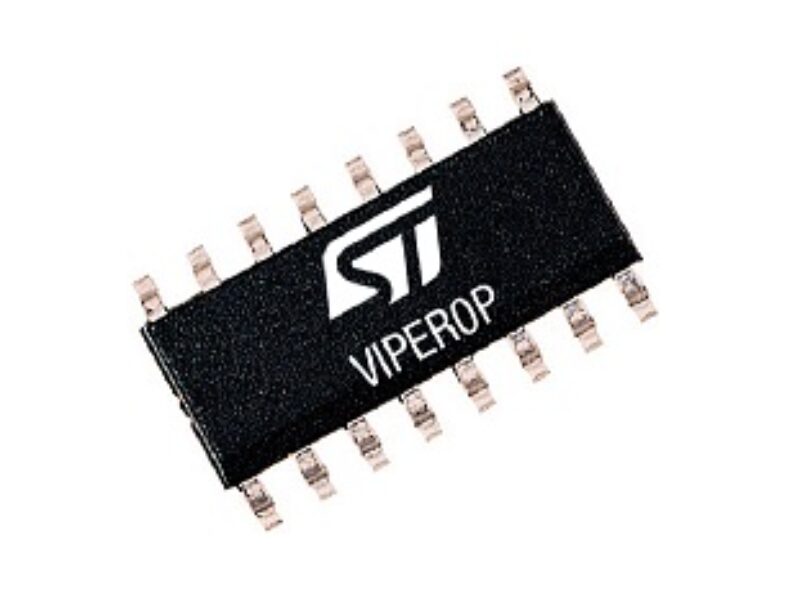

VIPer0P is now in volume production in the SO16N surface-mount package, priced from $0.54 for orders of 1000 pieces.
