Panel mount indicator series resists shock and moisture
The series also features several connection options, which facilitate fast, easy installation in extreme and outdoor applications, including: control cabinets, instrument panels, military and aircraft equipment, disinfection and sterilization environments, transportation dashboards, switch stations, outdoor signage, industrial machinery, and vending and gaming machines.

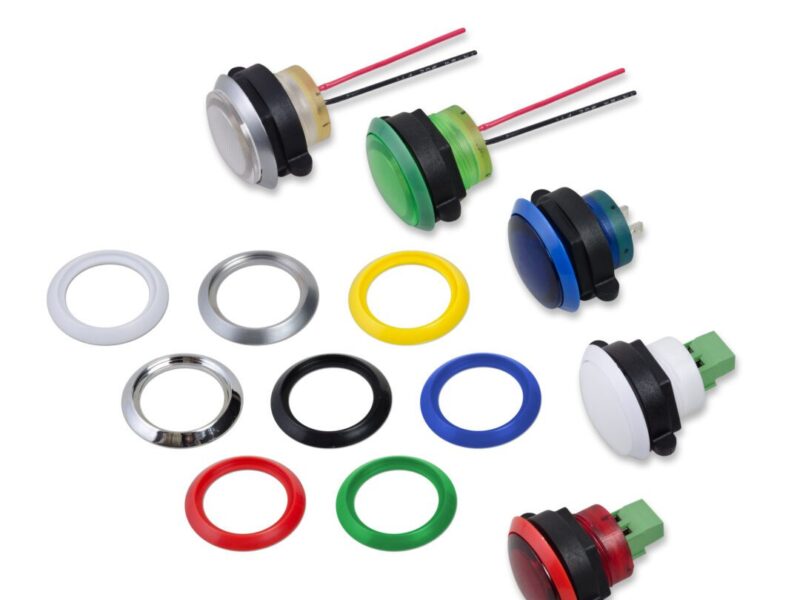

VCC’s CNX 722 Series TuffLED indicators are available in clear or color-coordinated polycarbonate, as well as in a glowing polycarbonate-acrylic blend. The series’ built-in LEDs are available in red, yellow, green, blue, and white, and may be used in 5, 12, or 24 VDC circuits. Additionally, optional bezels, which provide a smooth, cosmetic finish, are available in black, red, yellow, green, blue, white, aluminum, brushed aluminum, and chrome.
Featuring fast pitch threads and special nut assemblies that enable quick installation by requiring only a single turn with one’s fingers or a 1” hex tool, VCC’s TuffLED indicators are available in three termination styles: screw block, quick disconnect solder terminals, and wire lead. The ruggedized indicators are also moisture-sealed to IP67/NEMA 6P, rated for use between -40°C to 80°C, can withstand current up to 20mA, and can accommodate panel thicknesses of up to 7.6mm and mounting holes ranging from 21.7 – 23.1mm.
