PC cards enable next generation spectroscopy
PC cards from Spectrum Instrumentation are being used to reduce the size and weight of the magnets used in next generation spectroscopy systems.

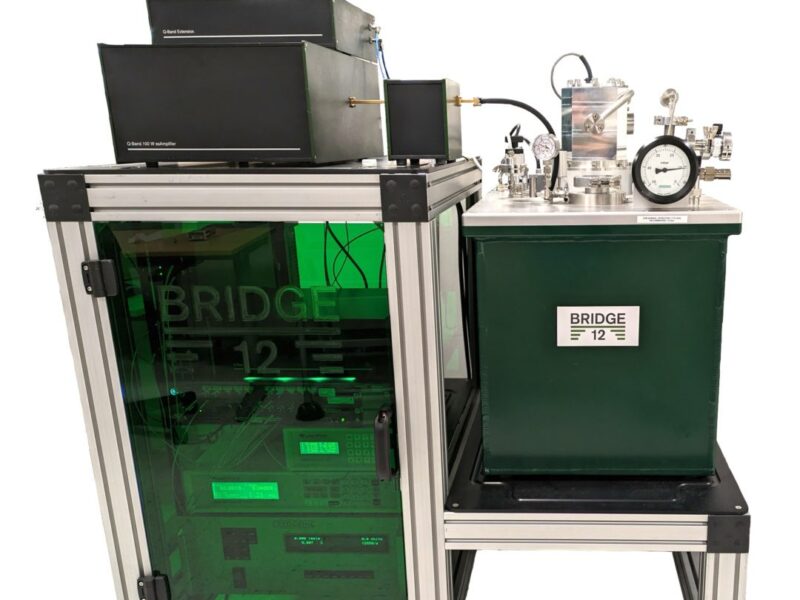

Bridge12 in the US is using Arbitrary Waveform Generator (AWG) cards from Spectrum in Germany for a spectrometer that half the cost and on tenth the size and weight of existing systems. This allows the spectrometer to be used on any floor of a building, which has not been possible before.
Electron Paramagnetic Resonance (EPR) or Electron Spin Resonance (ESR) spectroscopy is similar to Nuclear Magnetic Resonance (NMR) spectroscopy but examines the nature of unpaired electrons instead of nuclei such as protons. It is used in the fields of chemistry, biology, material science, and physics to study the electronic structure of metal complexes or organic radicals.
Traditionally, EPR spectroscopy requires massive electromagnets that can weigh over a ton and therefore are often located in basements. The system developed by Bridge12 uses a pair AWG cards from Spectrum Instrumentation to generate the pulses and a Digitizer to capture the returning signal.
EPR spectroscopy has evolved over the past few decades thanks to advances in radar technology and the mobile telecommunications that created equipment that could be used to build EPR hardware which uses microwave technology that needs increasingly higher frequencies for better resolution. Historically, EPR spectrometers have operated at 10 GHz (X-Band), but thanks to 5G technology, there is now new commercial equipment that can operate at much higher frequencies such as 35 GHz (Q band), a frequency that is much more desired for this type of application.
The AWG generates 10 – 100 ns long pulses in the 200 to 500 MHz range as required by the experiment that are then first up-converted to X band range using an RF I/Q mixer and then up-converted to the Q band range. The microwave pulses are then fed into 100 W solid-state amplifier before sent to the EPR resonator. The reflected signal is then down-converted to an IF frequency in the 200 to 500 MHz range and sent to the digitizer. In EPR spectroscopy, the signal is traditionally down-converted to DC, however this new approach drastically reduces noise and artifacts.
“As a start-up, we had a clean slate to design our EPR spectrometer enabling us to use the latest technologies to create a next generation product that is much more compact than existing products. This will open up the use of this methodology to a much greater audience of researchers,” said Thorsten Maly, VP Magnetic Resonance at Bridge12.
“Most of our customers are university researchers who gain access to the method through collaborations. Having a cheaper, state-of-the-art instrument will increase access to this powerful method. Our third goal was to make it much easier to use than current devices that need an experienced operator so that any scientist can use it for their research which will make EPR spectroscopy more widely used. Our control software has been designed to be intuitive to use with many features automated so that the set-up is straightforward and it immediately shows if the experiment is working correctly. You don’t have to be an expert in EPR spectroscopy to obtain results.”
“EPR spectroscopy can measure distances in the range of 1 – 100 Angstroms but requires very accurately generated pulse sequences which is why we used Spectrum Instrumentation cards as they have extremely low levels of noise,” said Maly.
“In addition, our spectrometer is designed to be modular so that the customer can specify exactly what performance they want and then we select the perfect AWG and Digitizer from Spectrum’s extensive range without being forced to use an over specified card. What we particularly like about the Spectrum cards is that they come integrated into Netboxes that then connects to our PC through ethernet. That way we can use a compact PC and not one that must be big enough to insert cards or have a bulky rack solution. It makes it also much easier to service our instrument and replace components in the field.”
WURST (Wideband, Uniform Rate, Smooth Truncation) pulses are broadband microwave pulses with an excitation bandwidth and profile that exceeds that of a simple rectangular pulse by far. Pulses like this allow for broadband excitation in EPR spectroscopy and heavily rely on the performance of the AWG.
The other factor is being able to generate intense magnetic fields in the order of 1 to 1.5 Tesla which traditionally requires a huge, heavy electromagnet.
“We are using a much smaller, super-conducting magnet to produce the required magnetic field strength,” said Maly. “For this experiment, the sample always needs to be cooled to cryogenic temperatures using helium so we found a supplier of liquid cryogen-free (dry) magnets that are compact and can generate the high magnetic field of 1.2 Tesla but at a fraction of the size and weight at around 130 kg. Rather than using liquid helium, the instrument uses a cold-head and helium compressor, which is effectively a fridge achieving cryogenic temperatures in a closed cycle. This is crucial as liquid helium is becoming increasingly hard to obtain.”
www.bridge12.com; www.spectrum-instrumentation.com
