PCI-Express 6.0 test solution for data intensive markets

PCI-Express 6.0 test solution for data intensive markets

New Products |
By Rich Pell

PCIe 6.0 is an important and scalable standard for data-intensive markets such as data center, artificial intelligence/machine learning (AI/ML), and high-performance computing. To meet ever growing performance demands, PCIe 6.0 standard transitions to PAM4 signaling and new innovative error correcting techniques.

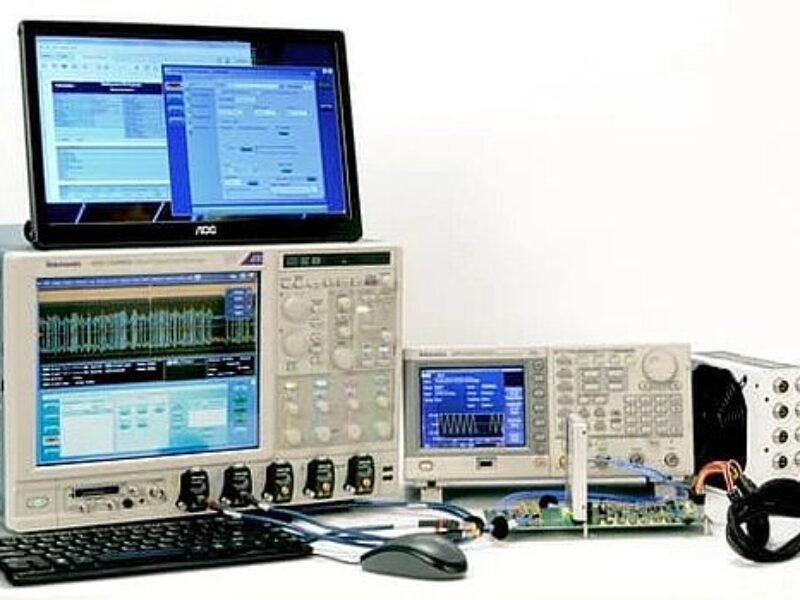

The company’s test solution includes PCIe 6.0 measurement-specific software, enhanced PAM4 DSP capabilities and noise compensation on the oscilloscope for increased accuracy of results. The test solution for PCIe 6.0 standard is further enhanced, says the company, by the industry-leading analysis tools for SNDR and uncorrelated jitter measurements, which are both mandated requirements for the PCIe 6.0 standard.

Key features include:

  • PCIe 6.0 (64 GT/s) standard automated Base Transmitter solution running on Tektronix DPO70000SX series real time oscilloscopes with bandwidth 50 GHz and above
  • Enhanced PAM4 DSP capabilities with the Tektronix PAMJET application
  • Support for measurements uniquely developed for PCI Express 6.0 standard including SNDR, RLM, uncorrelated jitter, and pulse width jitter
  • Instrumentation noise compensation techniques tailored to individual measurements to achieve the most accurate results

The PCIe standard solution is now available worldwide for use with the company’s DPO70000SX Real-Time Oscilloscopes.
