Philips halves LED count in retrofit lamps

Philips halves LED count in retrofit lamps

New Products |
By eeNews Europe

With this offering, lighting designers can take advantage of a high lumen package with high efficacy while using fewer chips per fixture. For example, a 50W PAR20 lamp can be achieved using only 4 LEDs. Alternatively, a 40W A19 lamp that previously required 14 LEDs can now be created using only 6, the company explained

The new mid-power LEDs are offered across a full spectrum of correlated color temperatures (2700K-6500K) with a minimum CRI of 80. Versions with CRI 70 for outdoor applications and CRI 90 for high-end indoor applications are planned for future release.

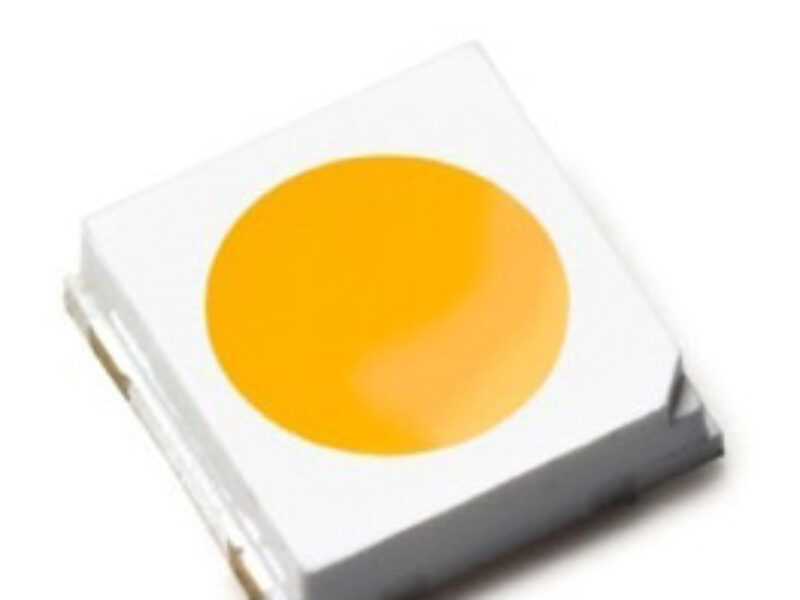

The LUXEON 3535 2D line operates at 0.5 – 1W, delivering up to 130 lumen in the compact 3535 form factor. Rated at 100mA, the LUXEON 3535 2D can be driven up to a maximum of 200mA. The LUXEON 3535 2D supports Energy Star certification requirements up to 25,000 hours at 85°C and 150mA.
