Plessey unveils high-volume large GaN-on-Si LED die capability

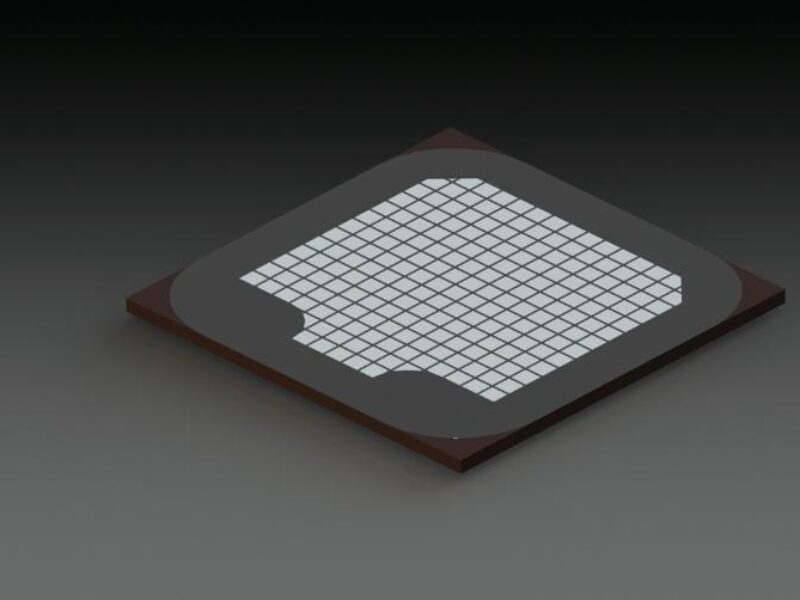

The large die benefits from three core features of the Plessey process; the first being the low thermal resistance of silicon, followed by a single-surface, emitter die design and 6-inch wafer processing. To exploit these benefits, Plessey has produced a 20 sq. mm die design (i.e. 4.5 x 4.5 mm) that will generate up to 5W of blue light over a 400-480 nm wavelength range. The die is produced as a technology demonstrator to enable meaningful engagement with customers to determine the optimum application fit.
Large area LED die help customers in many ways, particularly for Chip-on-Board (CoB) products in providing a much simpler, more uniform light emitter whilst reducing die attach and wire bond overheads. The low thermal resistance of the silicon substrate makes for easier thermal management and enhanced reliability resulting from lower temperature operation. The die uses Plessey’s vertical design structure that has a cathode top and anode bottom contacts, which is ideal for scaling the effectiveness in applying large die. The 6-inch wafer processing capability coupled with best-in-class across wafer uniformity, Plessey makes such large die a real commercial proposition.
David Owen, Plessey’s Marketing Director, said: "It is clear that the next wave of general lighting products will see LEDs applied in ways that truly exploit the benefits obtained through Plessey’s leading GaN-on-Si technology. This announcement marks the start of a phase where we engage with our key partner customers in defining the commercial realisation of lighting products based on Plessey’s large GaN-on-Silicon LED die."
