Power modules for industrial motor drives of up to 4 kW
Infineon Technologies AG has expanded its 7th generation TRENCHSTOP™ IGBT7 product family with the CIPOS™ Maxi series of Intelligent Power Modules (IPMs) for low-power motor drives.
The latest IM12BxxxC1 series is based on the new TRENCHSTOP IGBT7 1200 V and rapid diode EmCon 7 technology. Thanks to the latest micro-pattern trench design, the power modules offer exceptional control and performance. This results in significant loss reduction, increased efficiency, and higher power density. The portfolio includes three new products in variants ranging from 10 A to 20 A for power ratings of up to 4.0-kW, designated IM12B10CC1, IM12B15CC1 and IM12B20EC1.

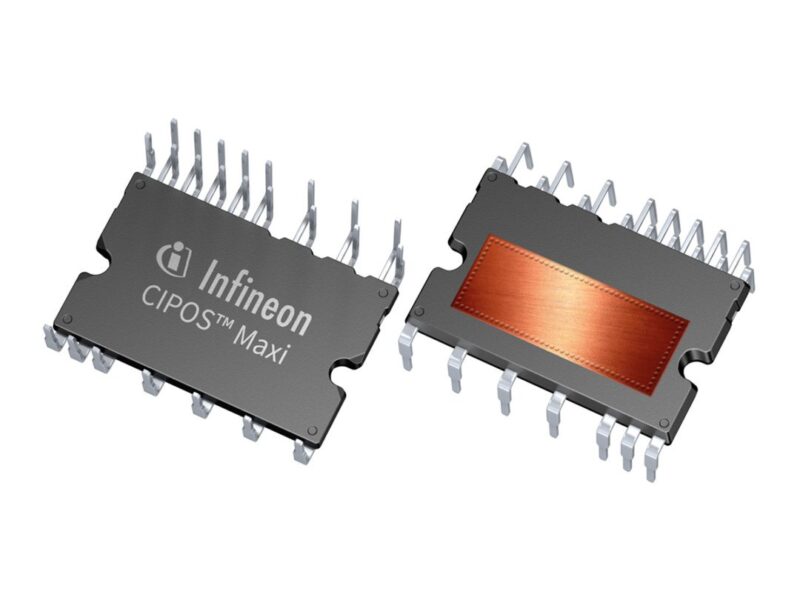

The IM12BxxxC1 series is packaged in a DIP 36x23D housing. It integrates various power and control components to increase reliability, optimize PCB size and reduce system costs. This makes it the smallest package for 1200-V IPMs with the highest power density and best performance in its class. IM12BxxxC1 power modules are particularly suitable for low-power drives in applications such as motors, pumps, fans, heat pumps and outdoor fans for heating, ventilation, and air conditioning.
The new IPM series offers an isolated dual-in-line molded housing for excellent thermal performance and electrical isolation. It also meets the EMI and overload protection requirements of demanding designs. In addition to the protection features, the IPM is equipped with an independent UL-certified temperature thermistor. The CIPOS™ Maxi integrates a rugged 6-channel SOI gate driver to provide built-in dead time to prevent damage from transients. It features under-voltage lockout at all channels and over-current shutdown. With its multi-function pin, this IPM allows for high design flexibility for various purposes. The low side emitter pins can be accessed for all phase current monitoring making the device easy to control.
The three variants of the CIPOS Maxi IM12BxxxC1 portfolio of power modules can be ordered now.
