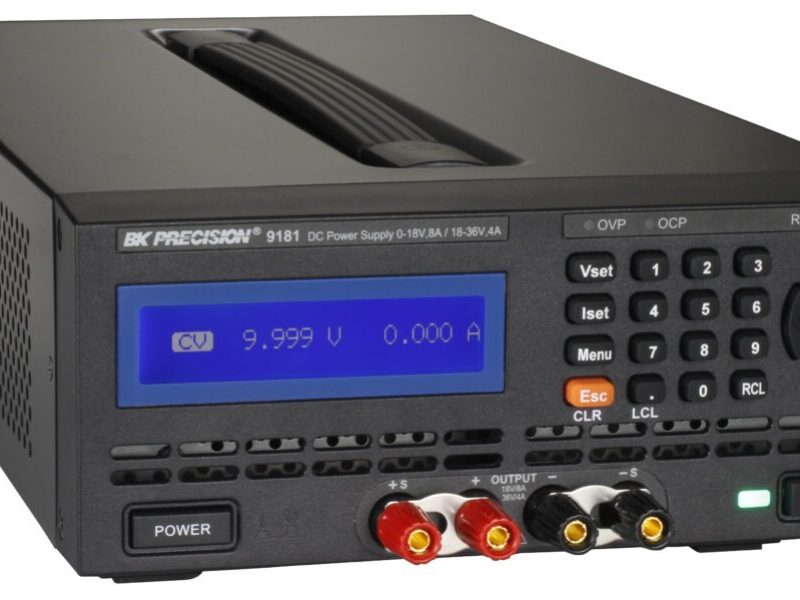

Programmable dual range DC power supplies for bench and ATE applications
Each model offers two ranges of voltage and current output along with modular interface slots for remote interface configurability. Delivered in rack-mountable, single and dual output model configurations, these DC power supplies are suitable for challenging bench and ATE applications in design engineering labs and electronics manufacturing. Models in the 9170/9180 series feature excellent line and load regulation less than 0.01% + 1mV, 0.01% + 250uA, ripple and noise less than 0.35mVrms, a full numerical keypad with vertical and horizontal cursors for direct entry of voltage and current values, front and rear panel output terminals, remote sense terminals, and a standard SCPI compliant USB interface for remote control.
Unique to the 9170/9180 series is its modular interface design and special LED test modes. Users have the option to choose from up to 4 different types of interface cards, which include: LAN and GPIB, Digital I/O and Analog Control, RS485, or RS232. These cards can be easily installed at any time when needed into either of the two modular interface card slots on the power supply’s rear panel. LED test modes can be used to minimize inrush current for safe testing of LEDs.
Other features include programmable voltage and current slew rates, list mode for executing programmed test sequences, and ability to store and recall up to 10 different power settings. Models with the optional LAN/GPIB interface card installed provide a built-in web server interface for remote control via a Java-enabled web browser. Both application software and LabVIEW drivers are available for users to download from B&K Precision’s website. The 9170/9180 series has built-in overvoltage protection (OVP), overcurrent protection (OCP), and a front panel key-lock function to prevent accidental damage to a device under test.
Visit B&K Precision at www.bkprecision.com
