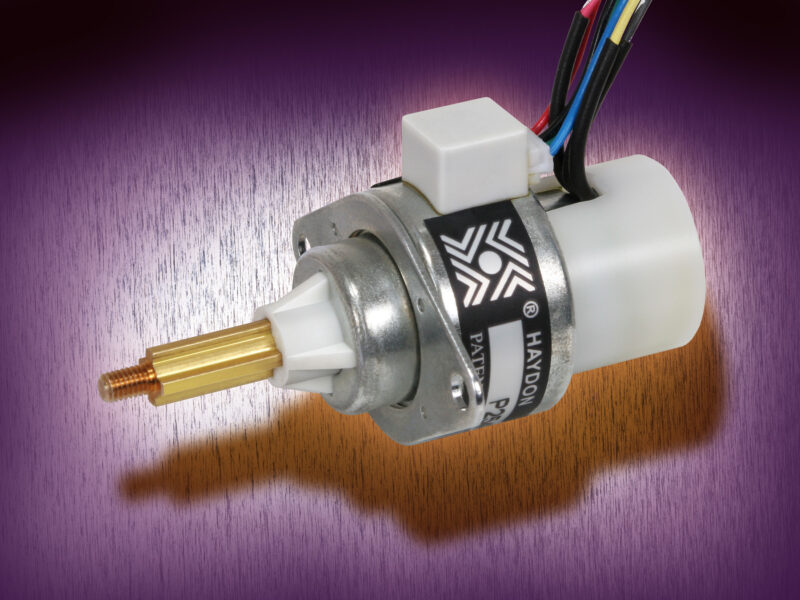

Proximity sensor is integrated with one inch can-stack linear actuator

Proximity sensor is integrated with one inch can-stack linear actuator

New Products |
By admin



The Hall Effect is an ideal technology with a virtually unlimited on-off cycle life due to the non-contact operation of the switch.  The Haydon can- stack linear actuator with the integrated proximity sensor is perfect for limited space applications.

A highly repeatable on/off signal is accomplished using a rare earth magnet embedded directly on the end of the internal screw.  As the screw moves in and out of the actuator, the magnet moves toward and away from the sensor face causing the device to switch states.  The proximity sensor is designed to operate in a digital switch mode using an open-collector output through an integrated NPN transistor switch.  The proximity switch is a 3 wire device and requires a supply voltage of 3.8 VDC minimum to 24 VDC maximum with a current consumption of 10 mA max.

The Haydon 25000 Series is part of the G4 line of high-output can stack linear actuators.

Visit Haydon Kerk Motion Solutions at www.HaydonKerk.com
