By Jean-Pierre Joosting

Deutsche Telekom has underlined its ongoing commitment to the development of Open RAN technology, by announcing details of a multi-vendor trial around programmable radio access networks that demonstrates the potential of the non-real time RAN Intelligent Controller (Non-RT RIC) and rApp concept to automate and optimize disaggregated RAN.

The Non-RT RIC brings intelligence, agility, and programmability to disaggregated radio access networks and enables third-party applications (rApps) that can perform closed-loop automation and optimization of RAN elements and resources. However, the multi-vendor integration of Non-RT RIC, rApps and Service Management and Orchestration (SMO) also introduces challenges that must be addressed.

Working together with AirHop, Juniper Networks, VIAVI Solutions and VMware, the partners completed a RAN closed-loop optimization Proof of Concept (PoC) within Deutsche Telekom’s lab environment in a multi-vendor setup based on ONAP and O-RAN specifications. Closed loop rApp algorithms were onboarded and deployed on partners’ Non-RT RIC. During the PoC, partners successfully executed two use cases:

  1. Physical Cell Identifier (PCI) optimization focused on detection and resolution of PCI confusion and collision scenarios.
  2. Energy Savings dynamic Multi-Carrier management (ESMC) using an Artificial Intelligence and Machine Learning (AI/ML) model, trained to determine the optimum time to enable/disable sleep-mode on capacity cells in order to save energy while maintaining user quality of experience (QoE).

Initial tests were performed in a real end-to-end lab setup using a small O-RAN network to validate end-to-end configuration and performance management (CM and PM) integration for a real network environment. Most tests were executed on a more complex network setup using an O1 network emulator (RIC tester) to validate rApp logic and stress test the RIC components to benchmark the various solutions.

About the setup

  1. Deutsche Telekom provided a self-developed SMO framework along with a Non-RT RIC solution based on the O-RAN SC Non-RT RIC
  2. Juniper Networks and VMware integrated their Non-RT RIC products into DT’s SMO framework
  3. AirHop integrated two rApps for PCI optimization and ESMC with each Non-RT RIC
  4. VIAVI provided their RIC tester to emulate the O1 interface

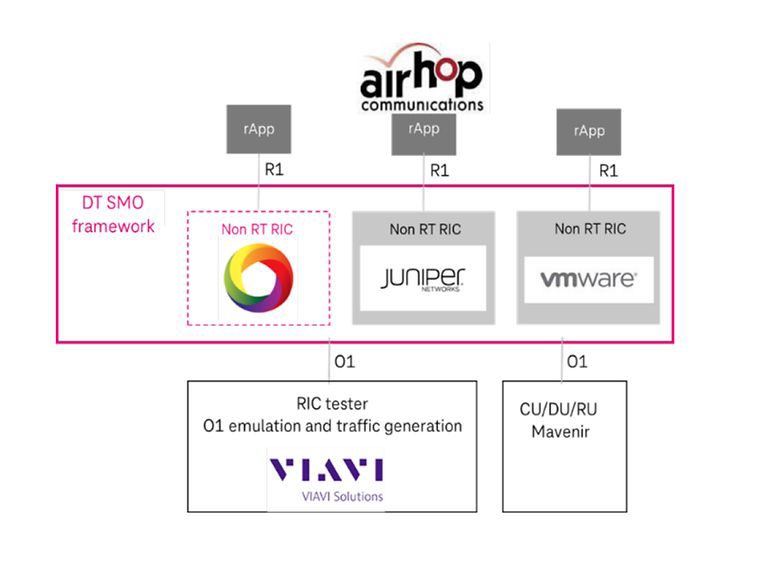

Deutsche Telekom and partners demonstrate non-real time RAN optimization in a multi-vendor enviroment. Copyright Deutsche Telekom.

The multi-vendor framework presents integration challenges. However, this PoC has shown from a high-level perspective that the adoption of the SMO, Non-RT RIC and rApp framework is promising in how it allows for the decoupling of optimization algorithm development, the supporting platform development and the system integration – so that components from different parties can form a truly disaggregated RAN optimization concept.

“With this PoC, we set out to assess the technical integration complexity of the components delivered by each party, the level of customization required, to gauge the maturity of products and to identify potential future standardization requirements,” stated Petr Ledl, VP, Head of Network Trials and Integration Lab, Deutsche Telekom.

A detailed outline of these challenges, as well as customizations and future standardization requirements, plus areas of further focus, are detailed in the trial White Paper (pdf, 1.2 MB)

“At DT our primary focus is always on driving innovation to support the best customer experience. The RIC and rApps are key to programmability, automation, and optimization in radio access networks. Taking the learnings from this successful trial, we will now continue the work with our ecosystem partners to accelerate Non-RT RIC/rApp development towards production readiness”, added Petr Ledl.
