Real-time clock chips compatible with low-voltage processors, down to 0.9V

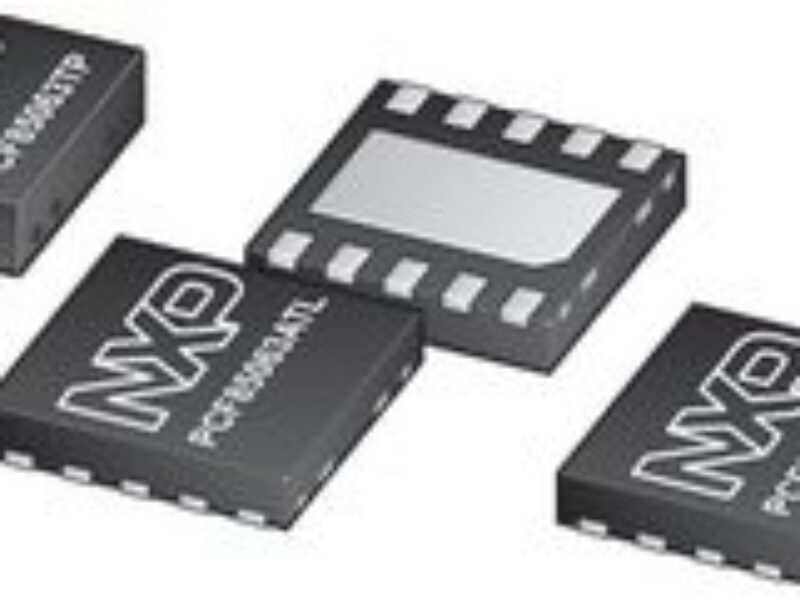

With a size of 2 x 3 x 0.75 mm and a pin pitch of 0.5 mm, the PCF85063TP tracks time and date from seconds to years, and is one of the smallest RTCs in the world, NXP claims. In addition to electronic frequency tuning, the RTCs can also be programmed to generate an interrupt every 30 or 60 seconds, communicating via a Fast-mode I2C-bus operating up to 400 kHz.
Measuring at 2.6 x 2.6 x 0.5 mm, the PCF85063ATL and PCF85063BTL are similarly small, with additional features including an alarm facility and a countdown timer controlled via an I2C or SPI bus. Ideal for battery-powered operation (IDD ~0.22 μA), the PCF85063 can be used for a wide range of timing functions in compact mobile devices.
The PCF85063 family of real-time clocks is in volume production; pricing for the PCF85063TP is $0.26 (10,000)
More information about the NXP PCF85063TP, PCF85063ATL and PCF85063BTL at www.nxp.com/pip/PCF85063TP or www.nxp.com/pip/PCF85063ATL or www.nxp.com/pip/PCF85063BTL
