Real-time Ethernet products are TSN-ready

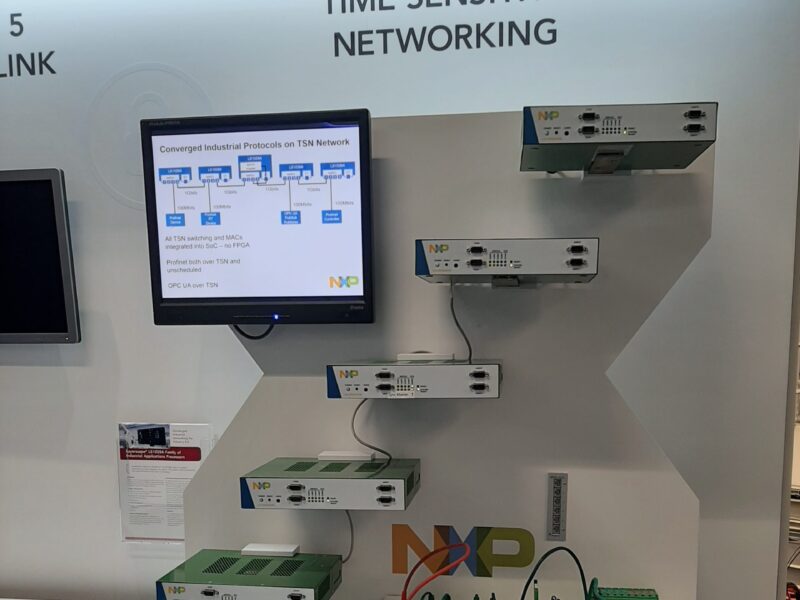

The TSN demonstrator is based on NXP’s Layerscape LS1028A industrial applications processor, which is deployed in multiple LS1028ARDB reference design boards for the demonstrator. The microprocessor-based solution allows customers to implement TSN without using FPGAs. Built around a cost-optimized 64-bit Arm v8 architecture, the LS1028A processor with a TSN-enabled Ethernet switch gives OEMs the capability to leverage four integrated TSN ports with built-in next-generation services such as frame preemption or cut-through switching.
“Ethernet TSN is a key technology that can enable industrial networks to support a mix of OT and IT traffic,” explains Christian Wiebus, NXP senior director of new business and innovation. “We are happy to work with EBV Elektronik and Fraunhofer to demonstrate TSN’s potential based on the NXP LS1028A and showcase the flexibility of devices leveraging TSN.”
“Our goal is to bring technology closer to our customers and demonstrations such as those developed with NXP and Fraunhofer IOSB-INA to create significant decision-making aids for customers”, added Karl Lehnhoff, Director Vertical Segment Industrial at EBV Elektronik.
Dynamic networked production, frequent reconfiguration of machines and systems, as well as the use of cloud technology and data-based smart services for Industry 4.0 applications require continuous, powerful, and flexible communications from the field level to the Internet, in which different protocols can be used simultaneously. Under the name Ethernet TSN, IEEE is developing standards for Ethernet-based real-time communication that can achieve this. The use of Ethernet TSN for industrial automation will be defined in the IEC/IEEE 60802 TSN-IA profile standard.
In the current demonstration, the communication class “isochronous cyclic communication with bounded low latency” is tested based on “scheduled traffic” (maximum QoS – Quality of Service). The test network is built with components from different manufacturers (multi-vendor) and with link speeds of 100 MBit/s and 1 GBit/s (mixed link speed). The demonstration shows how several protocols (PROFINET and OPC UA) can be transmitted over a TSN network without influencing each other, even in the highest QoS class. The basic TSN mechanisms used are time synchronization, frame preemption, and time-aware traffic shaping.
EBV Elektronik – www.ebv.com
NXP Semiconductors – www.nxp.com
Fraunhofer IOSB-INA – www.iosb.fraunhofer.de
