Rectification controller chip simulates ideal diodes with MOSFETs

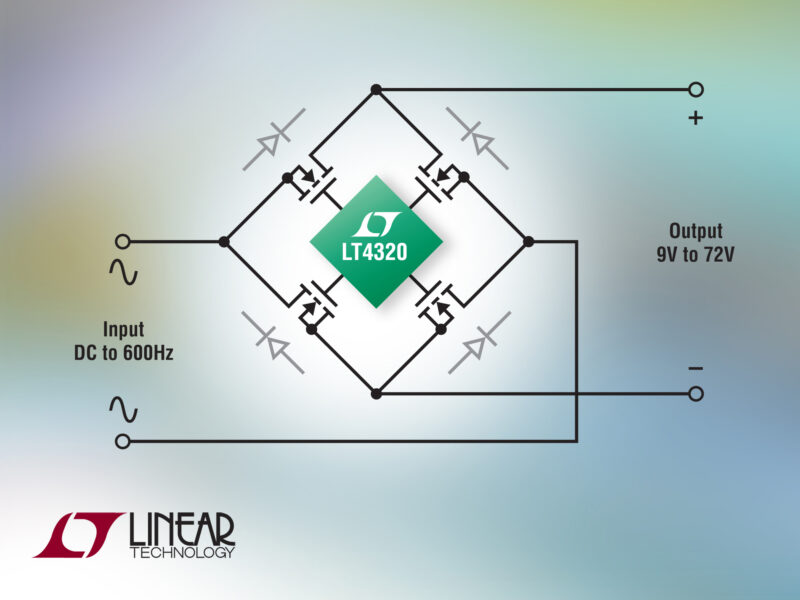

Power supply size is reduced as the enhanced power efficiency eliminates bulky heat sinks. Low voltage applications benefit from the extra margin afforded by saving the two diode drops inherent in diode bridges. Compared to the traditional alternative, the MOSFET bridge enables a rectifier design that is highly space- and power-efficient. The controller operates from DC to 600 Hz with a quiescent current of 1.5 mA. The LT4320 switch control smoothly turns on the appropriate two MOSFETs, while keeping the other two off to prevent reverse currents. An integrated charge pump provides the gate drive for the external low on-resistance N-channel MOSFETs without requiring external capacitors. The choice of MOSFETs offers the greatest flexibility in power levels ranging from one to thousands of watts.
The LT4320 is available in two options: the LT4320 is designed for DC to 60 Hz voltage rectification, whereas the LT4320-1 rectifies DC to 600Hz. Specified over the −40 to 85C industrial temperature ranges, the LT4320 occupies an 8-pin 3 x 3mm DFN package, or a 12-lead MSOP package with enhanced high-voltage pin spacing and costs $2.95 (1,000). Evaluation circuit boards are available.
Linear Technology, www.linear.com/product/LT4320
