Researchers shrink terahertz accelerator for electron beams

Researchers shrink terahertz accelerator for electron beams

Technology News |
By eeNews Europe

Only 0.79 millimetres in diameter, the 1.5 centimetres long device uses a longer pulse of narrowband terahertz radiations at many different wavelengths. The multicycle pulse is reported to significantly extend the interaction section with the particle

Dongfang Zhang and his colleagues from the Center for Free-Electron laser Science (CFEL) at DESY presented their experimental accelerator in the journal Physical Review X.

“We feed the multicycle terahertz pulse into a waveguide that is lined with a dielectric material”, says Zhang. Within the waveguide, the pulse’s speed is reduced. A bunch of electrons is shot into the central part of the waveguide just in time to travel along with the pulse. “This scheme increases the interaction region between the terahertz pulse and the electron bunch to the centimetre range—compared to a few millimetres in earlier experiments,” reports Zhang.

The device did not produce a large acceleration in the lab. However, the team could prove the concept by showing that the electrons gain energy in the waveguide. “It is a proof of concept. The electrons’ energy increased from 55 to about 56.5 kilo electron volts,” says Zhang. “A stronger acceleration can be achieved by using a stronger laser to generate the terahertz pulses.”

The set-up is mainly designed for the non-relativistic regime, meaning the electrons have speeds that are not so close to the speed of light. Interestingly, this regime enables a recycling of the terahertz pulse for a second stage of acceleration.

“Once the terahertz pulse leaves the waveguide and enters the vacuum, its speed is reset to the speed of light,” explains Zhang. “This means, the pulse overtakes the slower electron bunch in a couple of centimetres. We placed a second waveguide at just the right distance that the electrons enter it together with the terahertz pulse which is again slowed down by the waveguide. In this way, we generate a second interaction section, boosting the electrons’ energies further.”

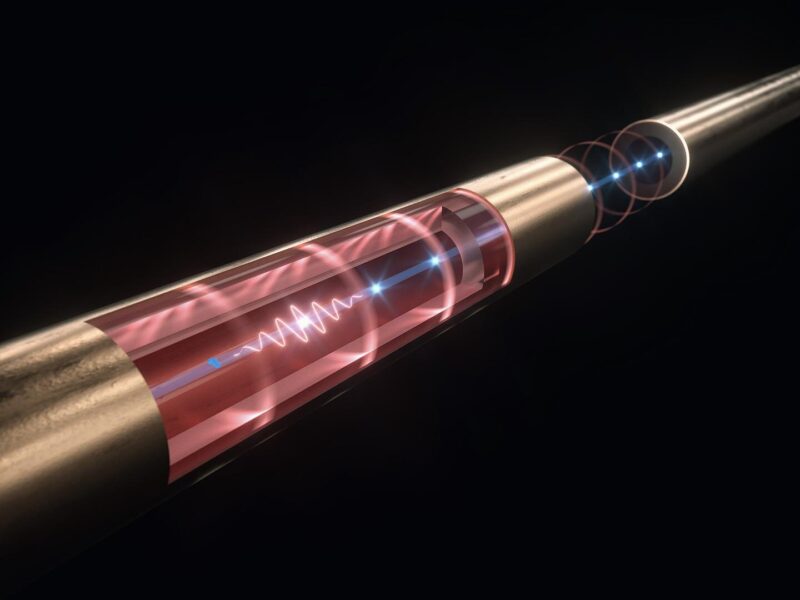

Proof of concept for cascaded terahertz accelerator using
long pulses. The mini-accelerator uses terahertz radiation
that can be recycled for a second stage of acceleration.
Credit: DESY, Science Communication Lab.

In the lab experiment, only a small fraction of the terahertz pulse could be recycled this way. But the experiment shows that recycling is possible in principle, and Zhang is confident that the recycled fraction can be substantially increased. “Our cascading scheme will greatly lower the demand on the required laser system for electron acceleration in the non-relativistic regime, opening new possibilities for the design of terahertz-based accelerators”, emphasised Nicholas Mattlis, senior scientist and the team leader of the project in the CFEL group.
Deutsches Elektronen-Synchrotron –
