RF noise filter suits audio lines in portable devices

RF noise filter suits audio lines in portable devices

New Products |
By Wisse Hettinga



Quality of sound has become a competitive selling point in portable devices and measures must be taken to avoid distortion caused by the necessary RF filtering in audio lines.

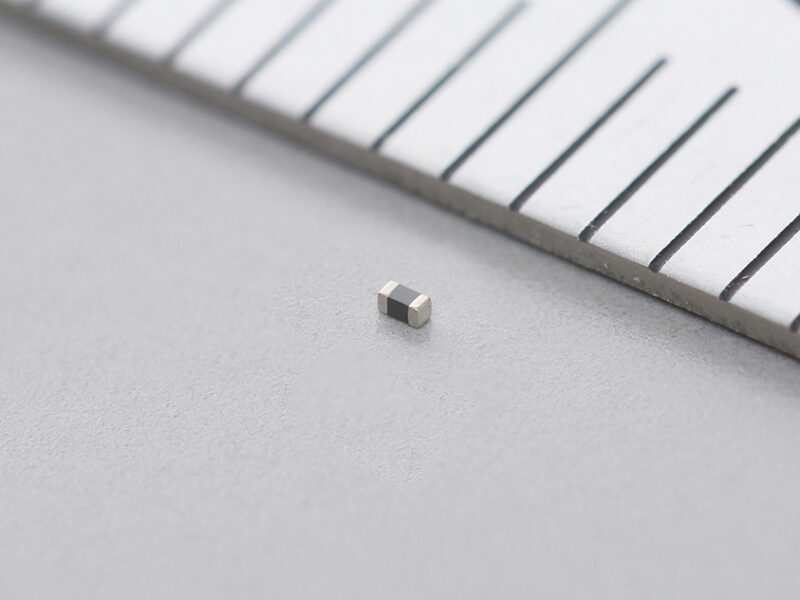

The NFZ03SG_SN series, now in mass production, claims to be the smallest chip filter on the market at 0201 size giving high attenuation at communication frequencies while introducing very low distortion to audio signals. Parts within the range can be selected for typical attenuation impedances between 330 and 1600 ohms at 900 MHz and between 400 and 1200 ohms at 1.7 GHz. DC resistances range between 0.6 and 1.7 ohms and rated current between 305 and 180mA.

At 0201 chip size, the filter matches the component density requirements of modern portable devices. This is achieved by proprietary ferrite and manufacturing technology.

The filter has an operating and storage temperature range of -55 degrees C to +125 degrees C.

www.murata.com
