The Institute of Electronics, Microelectronics and Nanotechnology (IEMN) in France has expanded its collaboration with Rohde & Schwarz on THz communications that use photonic technologies.

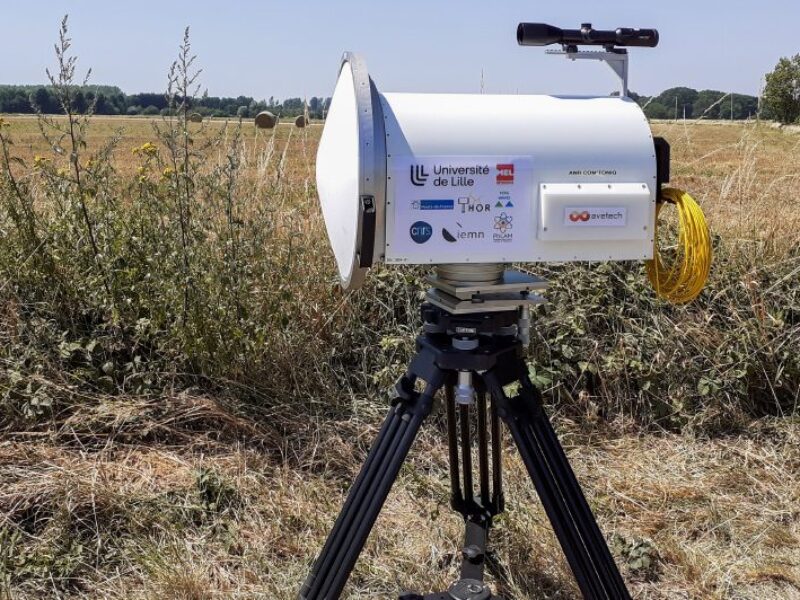

In a recent demonstration IEMN in Lille generated a 300 GHz bidirectional link over an outdoor distance of 645 m for use in future 6G backhaul links. The R&S SMA100B microwave signal generator was a crucial component in the performance test setup providing an ultra-low phase noise signal that helps accelerate THz communications research and development to ready it for industrialisation.
