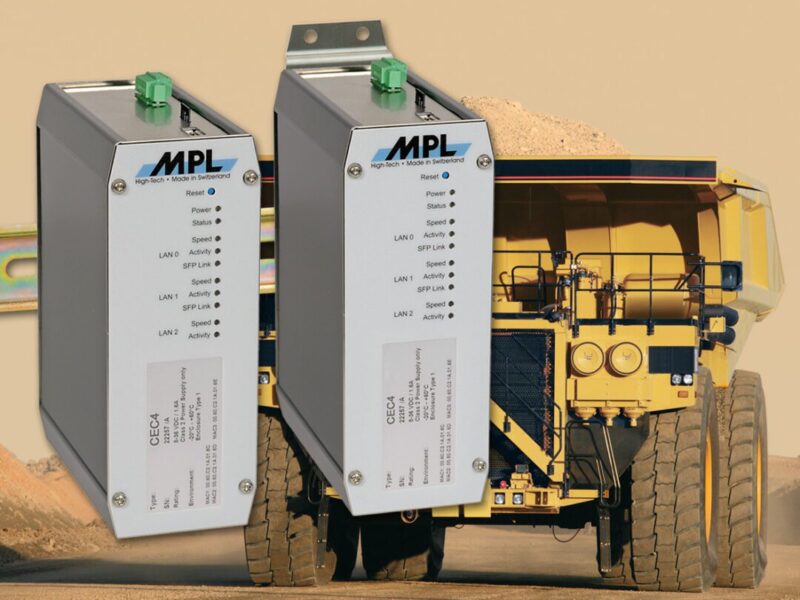

Rugged embedded computer draws as little as 5W
The CEC4 comes with 3 Gigabit Ethernet interfaces and is designed with a compact housing that offers sufficient space to add a SSD or SATA DOM, a 5-port switch (MAGBES) with copper only or mixed with fiber, or other peripherals. The housing allows the unit to operate in harsh environments without the need for fans or ventilation holes, it can easily be mounted on a 35mm DIN-Rail or with a flange on a wall. The computer operates in the -20 to +60°C temperature range (optionally even -40°C to +85°C) without fan or case openings. The internal miniPCIe slot allows various extensions (WLAN, GPRS…). 3 USB connectors and a microSD Memory Card Slot are available for easy logging and/or configuration capabilities. The CEC4 operates with an input voltage range of 8 to 36VDC and will draw as little as 5 Watt. The CEC4 comes with a full functional Linux Debian distribution.
Visit MPL AG at www.mpl.ch
