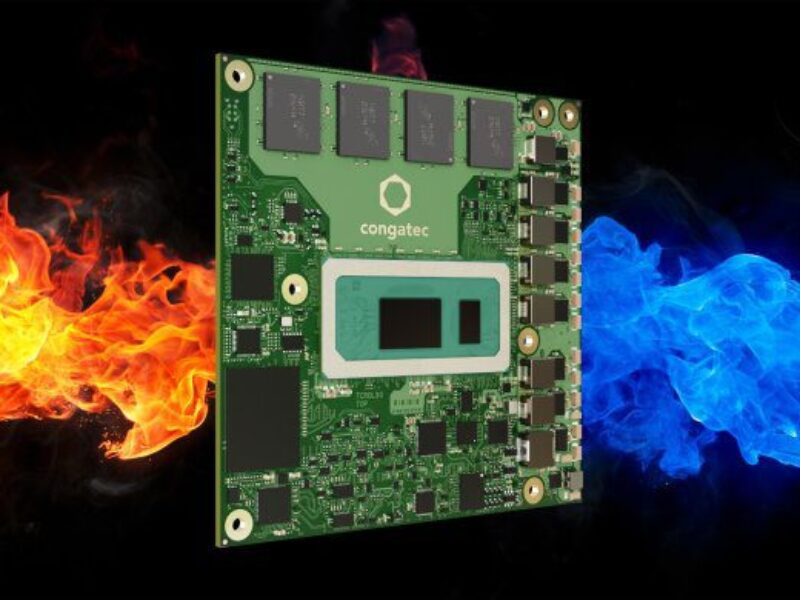

Rugged Type 6 COM modules with Intel Raptor Lake processors and TSN
congatec has launched six rugged COM Express Compact Computer-on-Modules based on 13th Gen Intel Raptor Lake Core processors and time sensitive networking (TSN).
The Type 6 modules are designed to withstand even extreme temperature ranges of -40°C to +85°C with soldered RAM for full compliance for shock and vibration resistant operation in harsh environments up to highest railway standards.
Target OEM applications for the COM modules are manned and unmanned rail and off-road vehicles for mining, construction, agriculture, forestry, as well as any other mobility application off paved roads. Shock and vibration resistant stationary devices and outdoor applications with high temperature fluctuations are further important application areas as digitization requires critical infrastructure protection (CIP) against earthquakes and other mission-critical events.
The Core processors have up to 14 cores and 20 threads, supported by LPDDR5x memory, with Performance-cores (P-cores) and Efficient-cores (E-cores) on a single processor. Moreover, the soldered LPDDR5x memory supports in-band error code correction (IBECC), so no special memory is needed for mission critical applications requiring highest data integrity, which also reduces the components to be procured.
The modules also include support for Time Sensitive Networking (TSN) and Time Coordinated Computing (TCC).
The modules are supported by congatec’s active and passive cooling solutions; optional conformal coating for protection against moisture, thermal shock, static, vibration, and contamination; evaluation carrier boards as well as the carrier board schematics.
For virtual machine deployments and workload consolidation in edge computing scenarios customers can order the modules with pre-evaluated real-time hypervisor technology from Real-Time Systems.
The hypervisor supports real-time operation and adds no additional latency. Additional service offerings including shock and vibration tests for custom system designs, temperature screening, and high-speed signal compliance testing, along with design-in services and training.
|
Processor |
|
Cores/ |
|
Max. Turbo Freq. [GHz] |
|
Base Freq. [GHz] |
|
Threads |
|
GPU Execution Units [EU] |
|
CPU Base Power [W] |
|
Intel Core i7-13800HRE |
|
14 |
|
5.0 /4.0 |
|
2.5 / 1.8 |
|
20 |
|
96 |
|
45 |
|
Intel Core i5-13600HRE |
|
12 |
|
4.8 / 3.6 |
|
2.7 / 1.9 |
|
16 |
|
80 |
|
45 |
|
Intel Core i7-1370PRE |
|
14 |
|
4.8 / 3.7 |
|
1.9 / 1.2 |
|
20 |
|
96 |
|
28 |
|
Intel Core i5-1350PRE |
|
12 |
|
4.6 / 3.4 |
|
1.8 / 1.3 |
|
16 |
|
80 |
|
28 |
|
Intel Core i3-1320PRE |
|
8 |
|
4.5 / 3.3 |
|
1.7 / 1.2 |
|
12 |
|
48 |
|
28 |
|
Intel Core i7-1365URE |
|
10 |
|
4.9 / 3.7 |
|
1.7 / 1.2 |
|
12 |
|
96 |
|
15 |
www.congatec.com/en/products/com-express-type-6/conga-tc675r/
