Single neural probe packs more “Neuropixels”, records multiple brain regions
The “Neuropixels” probe was developed for an international consortium consisting of Howard Hughes Medical Institute (HHMI), the Allen Institute for Brain Science, the Gatsby Charitable Foundation and Wellcome, with funding of $5.5 million.
Scientists at HHMI’s Janelia Research Campus, the Allen Institute and University College London (UCL) worked together with engineers at nanotechnology company imec to build and test the probes, which were designed and fabricated on imec’s advanced silicon platform. This is a step up from European FP7 project Neuroseeker in which Imec also participated, announcing hundreds of electrodes 20×20µm2 in sized, distributed over a 8mm-long biocompatible needle.

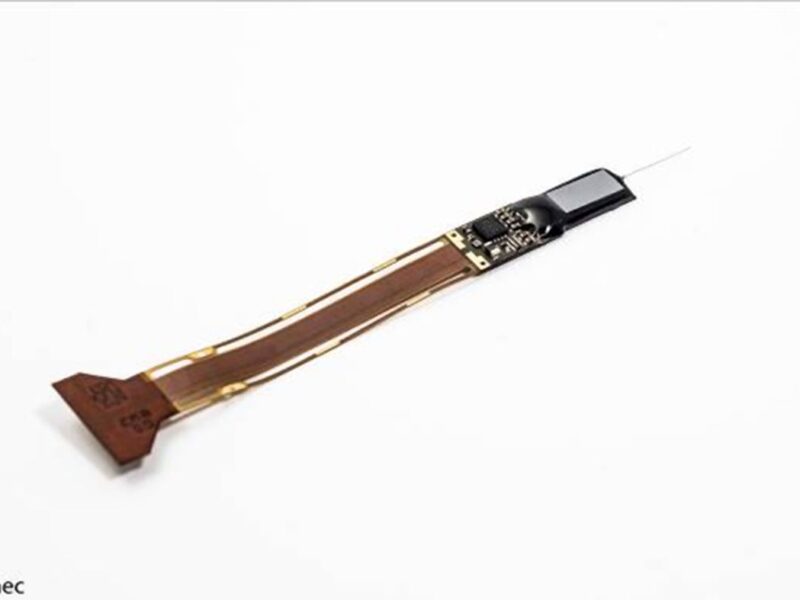

The new probe has 960 sensors, each measuring 12×12µm, tiled on a superthin (20µm) shank that is 1cm long and 70µm wide. The shank is fabricated together with a 9x6mm base on a single chip. The sensor density allows it to record isolated spiking activity from hundreds of single neurons in parallel. The recorded signals are sent through 384 recording channels to the base where they are filtered, amplified and digitized to provide researchers with noise-free digital data.
The Neuropixels probe solves both issues and enables precise real-time recording of the activity of hundreds of individual neurons. In addition, because of the length of the shank on which the sensors are placed, it is possible to record neural activity across different brain regions. This capability is essential to study the coordinated action of brain regions, and provides a better method of understanding the brain, and ultimately, for diagnostic and prosthetic tools to tackle human brain diseases.
2014 Nobel Laureate John O’Keefe of the Sainsbury Wellcome Centre at University College London and lead PI on the Wellcome and Gatsby Charitable Foundation grants said he was eager for British involvement in the project right from the beginning.
“It was clear to me that if these probes worked they would take our ability to relate single cell activity and behavior to a new level. And they would be particularly useful in cortical areas related to spatial memory such as the hippocampus and entorhinal cortex. In the past, we have had to put several implants with multiple tetrodes into these brain regions to collect enough data to do network analysis, to see how the cells interacted to form spatial representations, or to do decoding analysis where we try to figure out the animal’s position from the cell activity. Now we can place one Neuropixels probe along the length of the entorhinal cortex and record from twice as many grid cells as we could before, or record simultaneously from place cells in the CA1 and CA3 regions of the hippocampus, opening up a whole new level of analysis.”
The results were published in an edition of Nature this month and will also be presented at the Annual Meeting of the Society for Neuroscience in Washington, D.C., Nov. 11-15, 2017.
Imec – www.imec-int.com
