Slashing the power of heart defibrillators by 1000x
Researchers in the US and Colombia have slashed the power requirements for the defibrillators used to restore heart functions.
The researchers from Sergio Arboleda University in Bogotá, Colombia, and the Georgia Institute of Technology in Atlanta found that a single, properly timed, biphasic pulse can be more effective in defibrillating heart tissue than low energy antitachycardia pacing (LEAP), which employs a sequence of such pulses. This reduces the power requirement by 1000.
They used an electrophysiological computer model of the heart’s electrical circuits to examine the effect of the applied voltage field in multiple fibrillation-defibrillation scenarios. They discovered far less energy is needed than is currently used in state-of-the-art LEAP defibrillator techniques.
- Metasurface chip provides fast heart attack diagnosis
- €1.5m for photonic heart monitor
- Flexible cable to safely power heart pumps
“Existing low-energy defibrillation protocols yield only a moderate reduction in tissue damage and pain,” researcher Roman Grigoriev. “Our study shows these can be completely eliminated. Conventional protocols require substantial power for implantable defibrillators-cardioverters (ICDs), and replacement surgeries carry substantial health risks.”

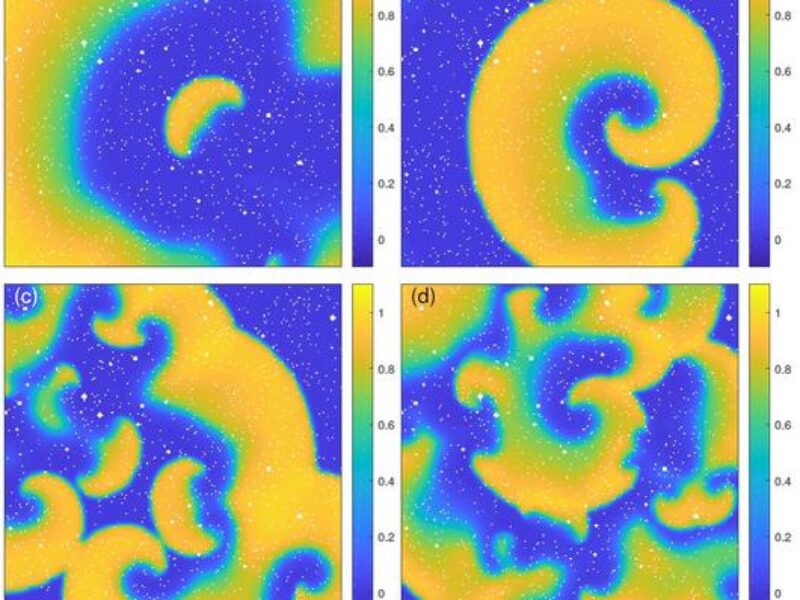

In a normal rhythm, electrochemical waves triggered by pacemaker cells at the top of the atria propagate through the heart, causing synchronized contractions. During arrhythmias, such as fibrillation, the excitation waves start to quickly rotate instead of propagating through and leaving the tissue, as in normal rhythm.
An adjoint optimization method was used to solve the electrophysiologic model for a given voltage input. Looping backward through time provides corrections to the voltage profile that will successfully defibrillate irregular heart activity while reducing the energy.
Energy reduction in a defibrillator is an active area of research. While defibrillators are often successful at ending dangerous arrhythmias in patients, they are painful and cause damage to the cardiac tissue.
“The results were not at all what we expected. We learned the mechanism for ultra-low-energy defibrillation is not related to synchronization of the excitation waves like we thought, but is instead related to whether the waves manage to propagate across regions of the tissue which have not had the time to fully recover from a previous excitation,” said Grigoriev.
“Our focus was on finding the optimal variation in time of the applied electric field over an extended time interval. Since the length of the time interval is not known a priori, it was incremented until a defibrillating protocol was found.”
“Under some conditions, an excitation wave may or may not be able to propagate through the tissue. This is called the ‘vulnerable window,’” he said. “The outcome depends on very small changes in the timing of the excitation wave or very small external perturbations.
“The mechanism of ultra-low-energy defibrillation we uncovered exploits this sensitivity. Varying the electrical field profile over a relatively long time interval allows blocking the propagation of the rotating excitation waves through the ‘sensitive’ regions of tissue, successfully terminating the irregular electric activity in the heart.”
doi.org/10.1063/5.0222247; www.gatech.edu
