Small compact embedded computer delivers high performance

Small compact embedded computer delivers high performance

New Products |
By Jean-Pierre Joosting

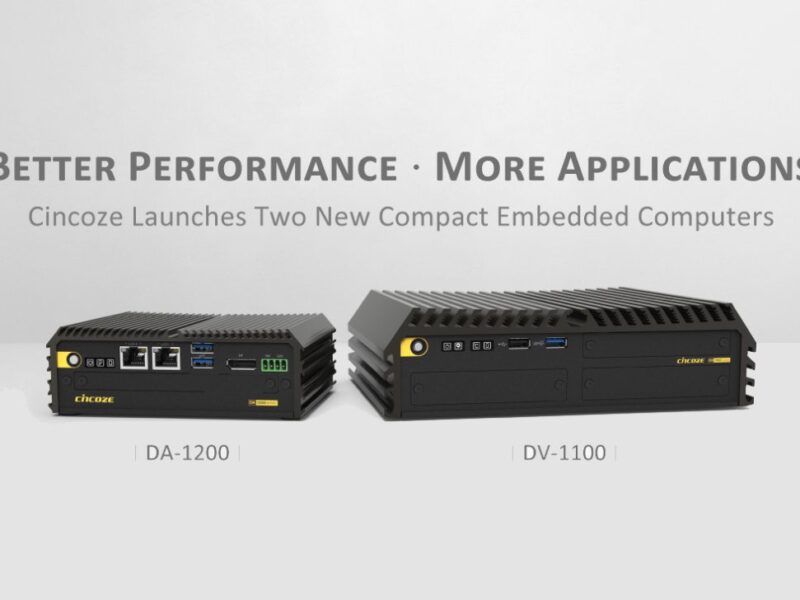

Cincoze has launched two new compact embedded computers in the Rugged Computing—DIAMOND product line. The DA-1200 embedded computer is a palm-sized device suitable for most industries’ basic applications and at a price point that has made it a popular choice. A higher performance version is now available.

The second offering, the DV-1100 embedded computer supports the latest 13th/12th generation Intel Core CPUs, providing powerful performance in a streamlined configuration and maximizing cost-effectiveness. It is recommended for industrial sites with high-performance computing needs but limited installation space, such as smart manufacturing, machine vision, and railway computing.


Small but powerful

The DA-1200 industrial embedded computer has a 12 W ultra-low power consumption Intel Alder Lake-N processor and supports 16GB DDR5 4800 MHz memory. Equipped with two M.2 Key B slots (convertible to M.2 Key E with an adapter card), the DA-1200 can cover all wireless communication needs (5G, WiFi, GNSS, etc.) and caters to storage options such as 2.5-inch SSD, half-slim SSD, and M.2 SSD. The palm-sized DA-1200 is only 150- x 105- x 52.3-mm, packing the maximum application flexibility into a tiny package.

The DA-1200 is easy to install and maintain. It supports wall mount, side mount, and DIN-rail mount options for ease of installation in space-constrained applications. To make setup and adjustment easier for customers, all the key settings and switches — the reset switch, AT/ATX switch, and SIM card slot are all accessible on the front panel maintenance area, making them more convenient. It is an entry-level choice that inherits the rugged DNA of the Cincoze industrial computer lineup. It works across a wide temperature range (-40 to 70°C) and wide voltage range (9 to 48V), complying with the US military shock resistant vibration standard MIL-STD-810H and the EMC test standard for industrial environments (EN IEC 61000-6-2 and EN IEC 61000-6-4).


High-performance, cost-effective

The DV-1100 supports the latest 13th/12th generation Intel® Core™ CPU and up to 32GB of DDR5 4800 MHz memory and provides high-speed NVMe SSD storage for maximizing processing capabilities. Measuring only 224.1- x 162- x 62-mm and supporting 2.5G LAN and 10G USB3.2 Gen2x1, the DV-1100 is the smallest high-performance Cincoze model and an ideal choice for industrial applications such as machine vision and real-time image monitoring that require a computer with a small footprint and high-speed communications. The DV-1100 has built-in M.2 Key B and Key E slots, and I/O and IGN functions can be added using exclusive Cincoze CMI and CFM modules.

The DV-1100 embedded computer passes and complies with several industry certifications or standards, such as EN 50155 (EN 50121-3-2 only) for railway computing, the US military shock-resistance and vibration standard MIL-STD-810H, and the EMC test standard for industrial environments (EN IEC 61000-6-2 and EN IEC 61000-6-4). The entire DIAMOND series can not only operate in a wide temperature range (-40 to 70°C) but also pass stringent internal testing, including a rigorous four cold starts over 17 hours at -40°C. This test challenges current industry limits and ensures the DV-1100 can reliably maintain stable operation in harsh environments.
