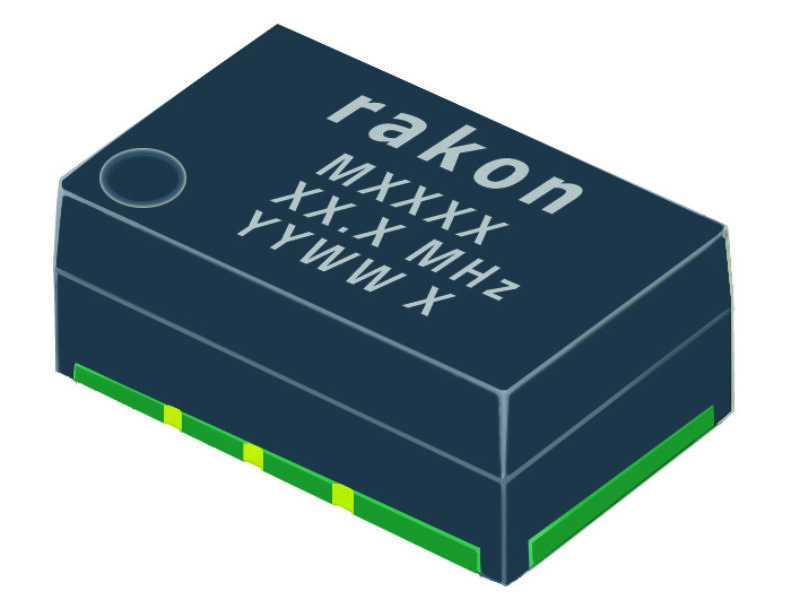

SMD OCXO has a phase noise as low as -165 dBc/Hz
New Products
|
By
eeNews Europe
This excellent phase noise performance is achieved via Rakon’s proprietary Mercury ASIC and through augmented circuitry design. This “Hybrid” solution also delivers a number of other benefits such as long term stability with aging less than ±2 ppb/day and temperature stability down to ±30 ppb between -40 and +85°C.
The device has short warm up times less than 3 minutes and only draws 350 mW for operation. The RMO1490A is suitable for design in base stations, microwave equipment and picocells.
