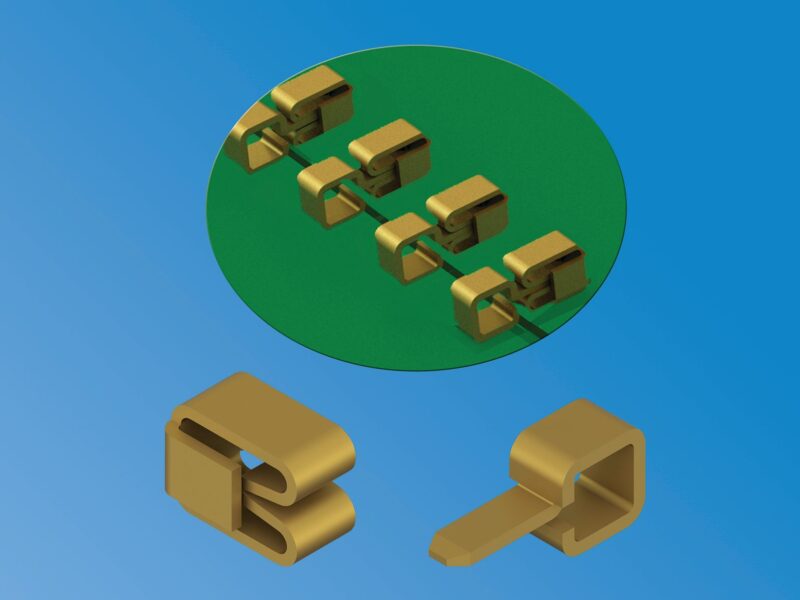

SMT PCB edge connectors are low profile
Quickly and easily set-up, these space-saving SMT connectors have a horizontal orientation making them uniquely suitable as parallel board-to-board or board-to-component alternative options for power or signal transferring. These new connectors are designed to provide ideal low profile circuit linkage and minimal footprint for high-density, high current PCB packages on power and aluminium backplanes. All PCB soldering applications, including reflow, may be utilized. Manufactured from Phosphor Bronze with Gold Plate, Connectors are available in a Male (pin), Cat. # 6100 (bulk) or Cat. # 6100TR (tape and reel) and a Female (socket) Cat. # 6102 (bulk) or Cat. # 6102TR (tape and reel). The female sockets are equipped with side guides for additional reinforcement to minimize PCB movement when installed.
Keystone Electronics – www.keyelco.com
