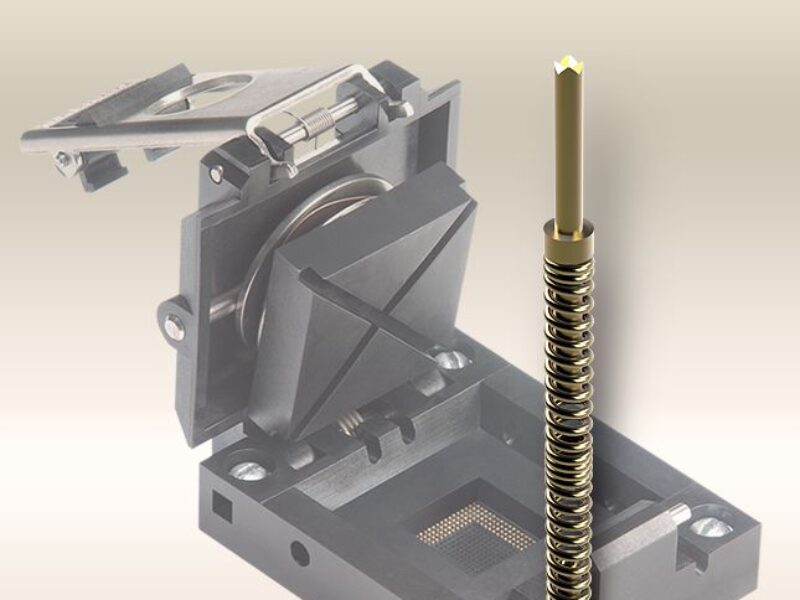

Socket spring probes are capable of 0.2mm pitch contacts

Socket spring probes are capable of 0.2mm pitch contacts

New Products |
By eeNews Europe



14.00

The contact and spring material are gold plated beryllium-copper. The probes are available with either a pointed –tip of crown-shaped termination. These new probes will yield over 100k cycles over a temperature range of -55° to +150°C. The probes have a very low inductance (around 0.59nH) signal path making them compatible with testing RF devices at 10GHz and beyond. They require about 6g of compression to actuate and can be placed on a .004” diameter PCB pad.

These probes can be used with any of Aries standard molded AND machined CSP socket bodies.  This enables the customer to use this socket on any new or previously existing test (or burn-in) board.

Visit Aries Electronics at www.arieselec.com
