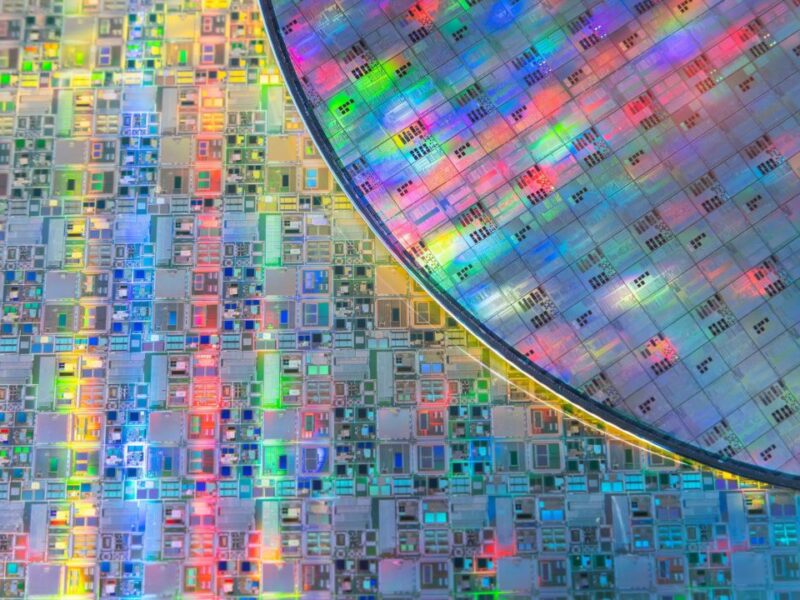

Sondrel heads to 3nm as it completes 5nm chip design
UK chip house Sondrel has completed its most complex chip design to date with 50 billion transistors on a 5nm process as it heads to 3nm
“With every new process node, the density and number of transistors per area increases dramatically, along with the overall complexity of designing in each process. For example, only a few years ago, our biggest chip had 30 billion transistors. Our latest design delivered over 50 billion transistors,” said Graham Curren, CEO of Sondrel.
- Sondrel tapes out its largest chip
- Sondrel IPO sees biggest UK chip deal since ARM
- Sondrel engages SHD Group to expand ASIC design
“Many factors were considered to implement a 5nm design: number of engineers working on the design, the size of the design database, the complexity of data management, the number of design rules, and the expanded capability of compute infrastructure,” he said, “Such a project also requires a sophisticated project management system to oversee every aspect of the design to ensure on time delivery of the highest quality.”
“We typically have several such mega chip designs on the go at the same time as, with more than 130 engineers, we have in house the skilled resources to create the teams needed for each stage of the design. And we are using all these skills for even more complex designs at 3nm with over a hundred billion transistors,” he added.
Sondrel has been moving from a design house to a provide a full turnkey service in the design, prototyping, testing, packaging and production of ASICs and SoCs down to 3nm. Its designs have been used in the Apple iPhone, Sony PlayStation, Meta Oculus, Samsung, Google and Sony smartphones, JVC prosumer Camcorders and cars from Tesla and Mercedes-Benz.
