Startup to develop ultrasound patch that measures brain blood flow
Researchers in the US are commercialising a wearable ultrasound patch for continuous, non-invasive monitoring of blood flow in the brain.
The soft and stretchy ultrasound patch developed at the University of California San Diego can be comfortably worn on the temple to provide three-dimensional data on cerebral blood flow, a first in wearable technology.
A startup company called Softsonics aims to commercialize the technology which overcomes the challenges of the current handheld transcranial Doppler ultrasound sensor as it can be worn continuously.

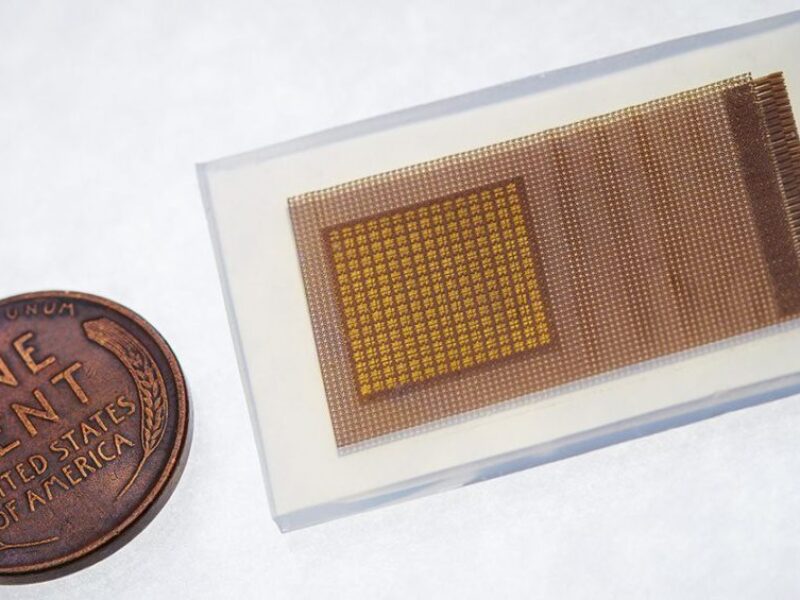

The ultrasound patch, roughly the size of a postage stamp, is constructed from a silicone elastomer embedded with several layers of stretchy electronics. One layer consists of an array of small piezoelectric transducers, which produce ultrasound waves when electrically stimulated and receive ultrasound waves reflected from the brain. Another key component is a copper mesh layer—made of spring-shaped wires—that enhances signal quality by minimizing interference from the wearer’s body and environment. The rest of the layers consist of stretchable electrodes.
This builds on stretchable patch technology developed by at USCD back in 2018.
During use, the patch is connected through cables to a power source and computer. To achieve 3D monitoring, the researchers integrated ultrafast ultrasound imaging into the system. Unlike standard ultrasound, which captures about 30 images per second, ultrafast imaging captures thousands of images per second. This high frame rate is necessary for collecting robust data from the piezoelectric transducers in the patch, which would otherwise suffer from low signal intensity due to the strong reflection of the skull.
The data are then post-processed using custom algorithms to reconstruct 3D information such as the size, angle and position of the brain’s major arteries.
“The continuous monitoring capability of the patch addresses a critical gap in current clinical practices,” said researcher Sai Zhou, a materials science and engineering Ph.D. candidate in Xu’s lab. “Typically, cerebral blood flow is monitored at specific times each day, and those measurements do not necessarily reflect what may happen during the rest of the day. There can be undetected fluctuations between measurements. If a patient is about to experience an onset of stroke in the middle of the night, this device could offer information that is crucial for timely intervention.”
Patients who are undergoing and recovering from brain surgery can also benefit from the ultrasound patch.
“The cerebral vasculature is a complex structure with multiple branching vessels. You need a device capable of capturing this three-dimensional information to get the whole picture and obtain more accurate measurements,” said researcher Xinyi Yang.
The patch was tested on 36 healthy volunteers for its ability to measure blood flow velocities—peak systolic, mean flow and end diastolic velocities—in the brain’s major arteries.
The researchers plan to collaborate with clinicians at UC San Diego School of Medicine to test the patch on patients with neurological conditions that impact cerebral blood flow.
Transcranial volumetric imaging using a conformal ultrasound patch.
