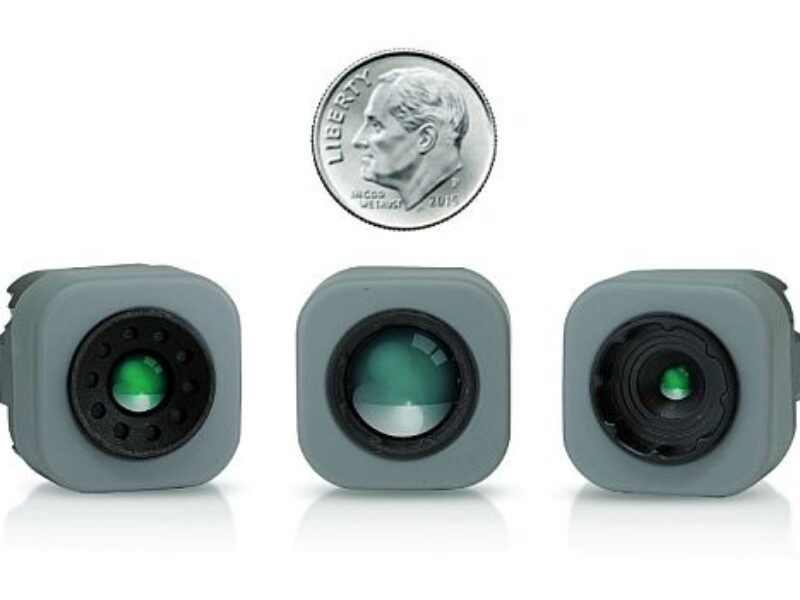

Thermal camera cores expanded to 53 offerings
The Mosaic Core wide range of highly versatile OEM Thermal Cameras are configurable by resolution, field of view, and frame rate – for virtually any application – to give developers the ability to integrate high-resolution thermal imaging into even more products that can be manufactured and sold under their own brand.
“With our full family of Mosaic Cores now available, implementing and delivering high resolution thermal technology has never been this simple and affordable,” says Sumitra Giri, Senior Product Manager, Seek Thermal. “As part of our mission to offer thermal imaging solutions for a better and safer world, we strive to make it easier for any developer or company to explore the possibilities of thermal imaging. To achieve this, our increasing line of cores deliver the high-end thermal capabilities, accuracy, and performance needed for virtually any existing – or revolutionary – application or product.”
The Mosaic Core is available in 320 x 240 and 200 x 150 resolution and is now more customizable to meet any program or project need, says the company. Applications include, but are not limited to, Test & Measurement, Security Surveillance, Public Safety, Outdoor Recreation, IoT, Personal Vision System, and beyond.
Mosaic Core specifications include:
- 320 x 240 or 200 x 150 Sensor Resolution
- 15° to 105° Field of View
- 10 x 20 x 21 mm to 23 x 20 x 21 mm (L x W x H)
- -40°C to 330°C Detection
- Up to 32 Hz and <9 Hz Frame Rate
Mosaic Core Starter Kits are available for simple, plug-and-play thermal imaging to kick off evaluation and testing. In addition, says the company, the Simple Viewer, along with access to the Developer Portal for Seek Thermal SDKs, APIs, and other important tools, enables any project team to begin successful development quickly and easily.
