Thermal chassis simulator for passive cooling

Thermal chassis simulator for passive cooling

New Products |
By admin

The unit contains both M3 and 4-40 hardware, as well as precision standoffs to support 0.600" or 1.000" clearance spreader solutions. Constructed from Blanchard-ground powder-cast plate aluminium, the surface flatness is better than 0.001" across the entire face. The anodizing gives the unit a basic emissivity of 0.75 or better, and represents the radiative area of an aluminium enclosure with of surface area.

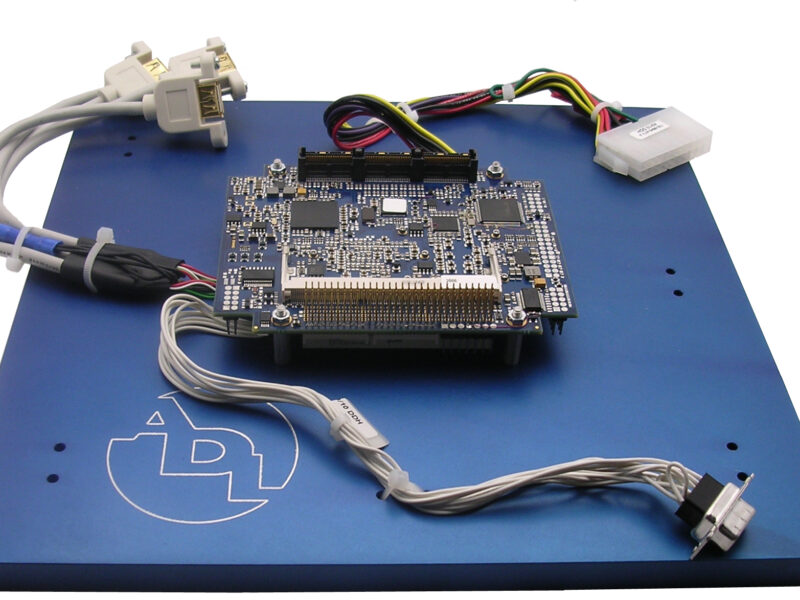

The CS-100 is also deployed as a development platform for proof of concept passive cooling systems. The extra hole-pairs around the perimeter are linked by a recessed groove on the back of the CS-100. In combination with nylon zip-ties, these hole-pairs make convenient strain-relief attachment points for the interface cables from your mounted PC/104 CPU. Keeping your cables neat and preventing undue harm to the connectors on the PC/104 motherboard, the CS-100 becomes the centerpiece of your passive prototyping experience.

Visit Advanced Digital Logic at
