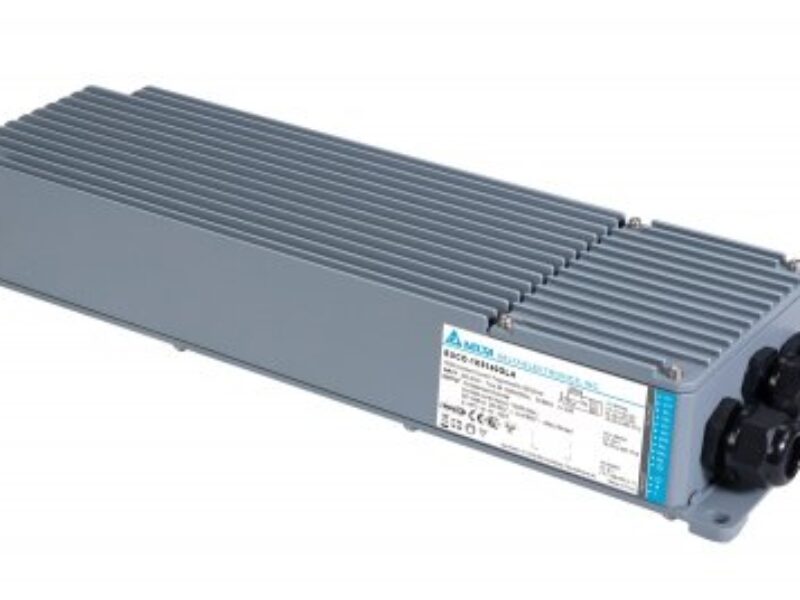

Three channel 1.5kW LED driver avoids camera interference
Taiwanese power specialist Delta has launched a 1.5kW LED driver designed to avoid problems of flicker interfering with TV and surveillance cameras.
The EUCO Arena Sport Series LED driver is designed with low ripple for luminaire manufacturers supplying industrial and commercial lighting applications such as high mast lighting, recreational sports lighting, harbours, airports, and parking lot lighting.
Built on three independent output channels with a maximum power of 500W (1500W total), the LED driver has a wide operating temperature range that ensures performance and reliability for the most rugged applications. It provides precise tuning of the drive current and are equipped with dimming circuitry for DALI-2 digital dimming to allow for adjustment of lighting levels from 0.1 percent to 100 percent.
In addition to the driver architecture and circuit topology, Delta has achieved a very low typical current ripple of under one percent peak-to-peak. That is important when it comes to televised events, since current ripple can cause LED flicker. Flickering lights affect the quality of sports broadcasts and limit slow motion options for surveillance cameras.
“Financial considerations play a significant part in recreational sports lighting, especially for stadiums. Energy efficiency, resource conservation, maintenance, and sustainability are important factors that should be taken into account for any lighting installation,” said Tim Lee, Vice President of Delta Electronics EMEA region. “And using LED lighting is not just about electricity costs. The metal halide lamps still installed at many arenas can take considerable time to warm up, for instance. If they turn off in the middle of an important event, it may take half an hour or more for the lights to come back on. Our new LED drivers for arena lighting offer exceptional efficiency as well as reliability so people attending and watching televised events can have consistently great experiences.”
The EUCO Arena Sport LED driver uses a solid heat sink that provides more contact area with the cold plate for passive cooling as well as high-quality components to ensure a long operating life and high reliability. In developing the EUCO Arena Sport series driver, one of the main design goals was to ensure good heat management so the product is capable of operating with high efficiency across a long service life.
The long lifetime and high reliability of EUCO Arena Sport LED drivers have passed the rigorous 5000hrs plus Accelerating Life Test (ALT) with harsh environment of 65°C temperature and 85deg humidity.
Depending on the installation environment and ambient temperatures, the maintenance intervals can be significantly increased. The LED driver can be located up to 200m away from the luminaire, which means the drivers no longer need to be on a high mast that requires a bucket truck or cherry picker that can damage grass fields or industrial climbers for driver maintenance and installation. This also allows light designers can now use much lighter masts since the weight of the driver is no longer a consideration. Even when retrofitting LED lights at an existing facility, old masts can be easily replaced. They also have a low inrush current, which allows facilities to reuse existing circuit breakers if desired.
The EUCO Arena Sport LED driver is available in two versions. The EUCO-1K5140GLA model is designed for DALI 2 control interfaces with the EUCO-1K5140GDA serving facilities that use RDM/DMX. Maximum output power for both versions is 1500W (three 500-watt channels) and default and maximum output current is 1400mA.
