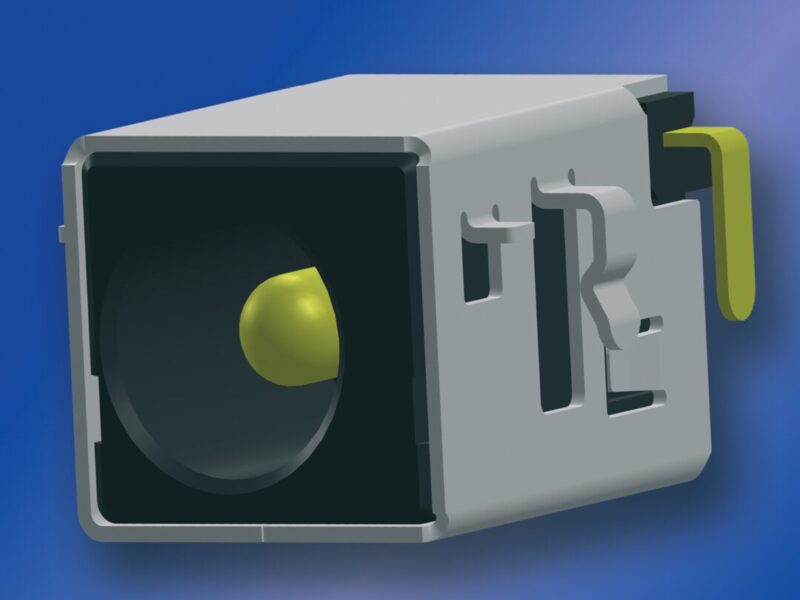

Two-pin, right-angle DC jack for external plug-in power supplies
New Products
|
By
eeNews Europe
Designed for in-board mounting, this right-angle through-hole technology jack measuring 13.90×9.90×9.0mm mounts inside the printed circuit board to save space. This reduces its height above the PCB surface to just 2.55 mm. Equipped with a spring-loaded switch contact and a center pin with a diameter of 2.5 mm, this jack accepts a DC plug connector with a diameter of 5.5mm. Key electrical specifications include the current/voltage rating of 9 A / 20 V (DC) per pin, the guaranteed number of 5,000 mating cycles, the contact resistance of 30 mΩ (initial), and the insulation resistance of 500 MΩ (initial). The connectors are supplied in tape & reel packaging for automatic placement.
Visit Suyin at www.suyin-europe.com
