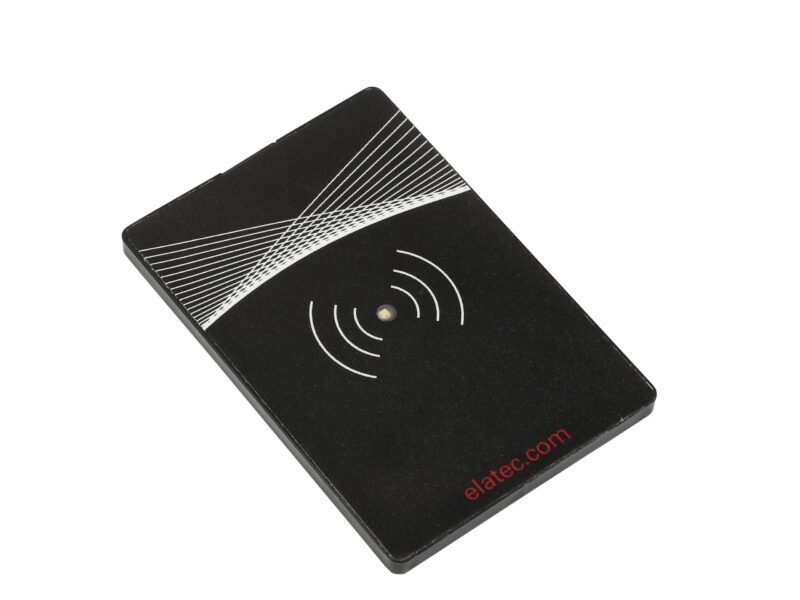

Universal RFID reader is 65.5×45.5x4mm
The main application for the TWN4 Slim is integration into devices, particularly ones in the field of secure printing. It is also suitable for many other ID solutions if a highly compact reader is required for integration. It also impresses as a stand-alone device. Measuring only 65.5×45.5x4mm, the sleek RFID reader features integrated antennas for HF, LF, and Bluetooth Low Energy (BLE) as well as a Micro USB interface. An RGB LED and a tone generator create feedback for the authentication process. This small device also places a big emphasis on service and maintenance: Firmware updates can be conveniently executed via the USB interface. Elatec offers various USB cable sets and adapters for integration. Along with that, a SAM slot is provided for applications with enhanced security requirements. Using the Elatec TWN4 tool, customers can thoroughly configure the TWN4 Slim or even create their own applications in the reader. Since the TWN4 Slim covers all common RFID technologies in the frequency ranges 125 kHz as well as 13.56 MHz, no different device versions need to be maintained.
Elatec – www.elatec.com
