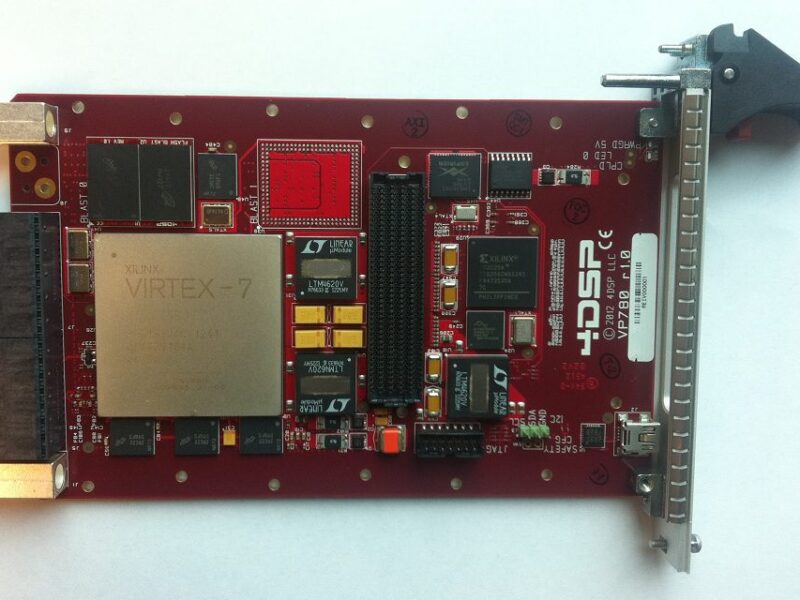

Both modules provide an FMC (FPGA Mezzanine Card, VITA 57) site and two 4DSP BLAST (Board Level Application Scalable Technology) locations that are closely coupled to the onboard Xilinx Virtex-7 FPGA and 2GB of DDR3 SDRAM.
The Virtex-7 FPGA device available on-board is user-programmable and can implement high-end signal processing algorithms. Based on customer requirements, front-panel I/O modules may be added to enable the FM780 or VP780 to perform data acquisition and waveform generation, high-speed communication, image processing and implement various types of complex DSP applications. In addition to 2GB of on-board DDR3 SDRAM the FM780 and VP780 have a variety of memory options such as NAND Flash, QDRII SRAM+, and extra DDR3 SDRAM through BLAST modules.
Optionally, the user-configurable BLAST mounting sites may be populated with JPEG2000 CODECs or even a customer’s specific logic devices or circuit designs. Both the FM780 and VP780 are available as conduction cooled modules. The VP780 and FM780 are available in operating temperature ranges of 0°C to 70°C or -40°C to 85°C with optional conformal coating.
