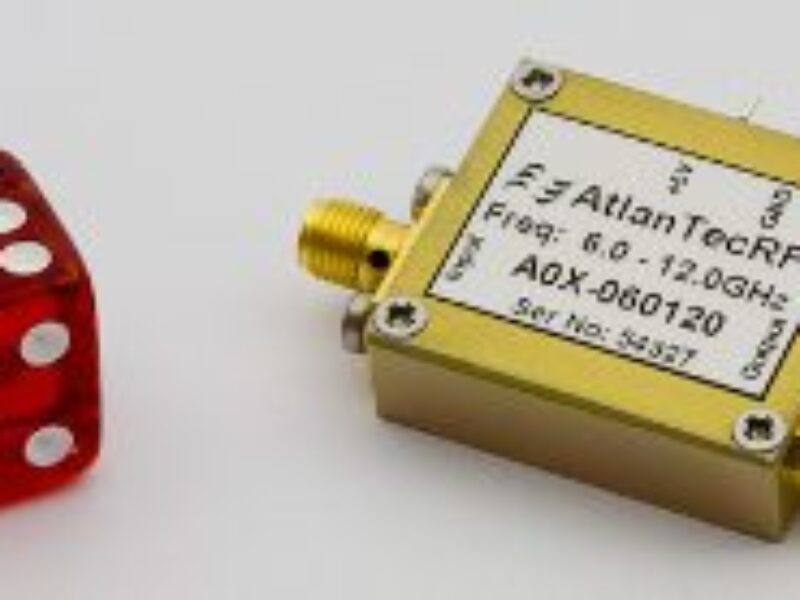

Wide band amplifier range claims excellent temperature performance
For all the models the gain is typically in the 26-28 dB region with guaranteed minimums of 22 to 25 dB and variation with frequency for some bands of better than +/-0.75 dB. Noise figure at +25 degrees C and at 6 GHz is 3 dB and this reduces to around 0.5 dB at temperatures of 4K.
All the amplifiers deliver typically +13 dBm of output power at the 1 dB gain compression point while third order intercepts are up to +28 dBm and input / output VSWR is 2.0:1 / 2.3:1.
Housings for all the amplifiers are 31.5 x 27.5 x 10.0 mm in aluminium alloy with alochrom 1200 finish and input/output is via SMA female, stainless steel RF connectors.
The DC supply, which can be as low as 5 V, is applied via a filtercon and ground post and has a current level of just 150 mA.
The amplifiers are designed and manufactured in the UK with a wide range of applications in mind, both commercial and military, and are available from stock.
