Wideband driver amplifiers deliver high gain/linearity over 2 to 9 GHz

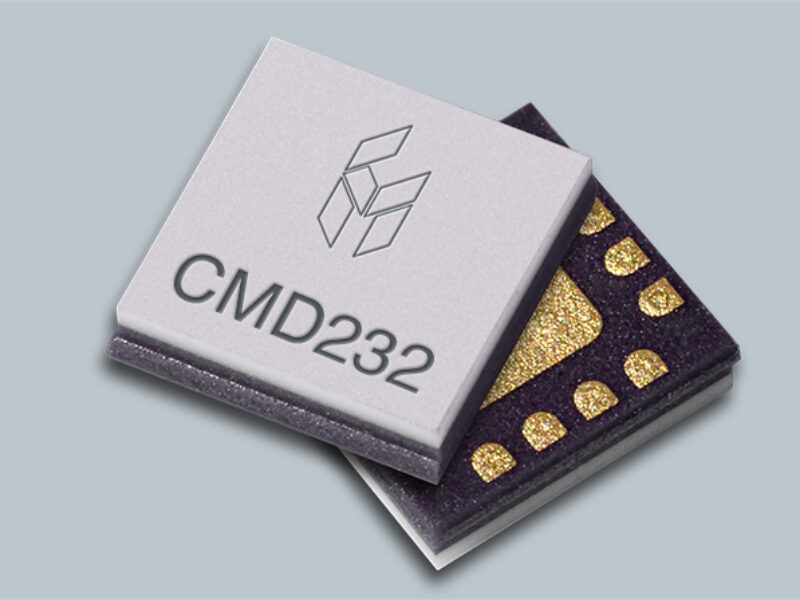

The CMD232C3 GaAs MMIC driver amplifier functions from to 2-9 GHz and delivers over 15 dB of temperature stable gain with an output 1 dB compression point of 17 dBm, and an output IP3 of 23 dBm. With this device’s high linearity in a compact 3- x 3-mm package, these amplifiers serve for military, space and communications systems. Custom MMIC eases the design process, requiring only a single 5-V positive supply and supply current of only 90 mA. The CMD232C3 is a 50 ohm matched design to eliminate the need for external DC blocks and RF port matching. The amplifier is a replacement for the Celeritek CMM-2, now in packaged form.
Offering wideband performance with a low current consumption, the CMD231C3 leverages GaAs MMIC technology to deliver over 14.5 dB of temperature stable gain and requires a supply current of only 45 mA. These amplifiers required only a single 3- to 8-V positive supply, thus simplifying the design process. It is offered in a 3- x 3-mm leadless surface mount package. Output 1 dB compression point is +13.5 dBm, with an output IP3 of 23.5 dBm. The CMD231C3 is a 50 ohm matched design which eliminates the need for external DC blocks and RF port matching. The amplifier is a replacement for the Celeritek CMM-9, now in packaged form. It is ideally suited for military, space, and communications systems where small die size and high linearity are necessary.
