By Nick Flaherty

MikroElektronika (MikroE) has launched its 1500th Click board add-on development board, adding the Wirepas Mesh wireless connectivity stack.

The Wirepas Click board uses a module from Würth Elektronik to provide large scalability for extensive IoT networks. The Click board supports the development of long-life battery-driven IoT networks, supply chains, asset tracking, smart lighting, smart metering, and more.

“MIKROE now offers 1500 Click boards –  more than any other company in the world. Clicks are available for many functions – sensors, power, motor control, HMI to name just a few. If we consider wireless connectivity alone, designers can choose from 160 solutions,” said Nebojsa Matic, CEO of MikroE in Belgrade, Serbia.

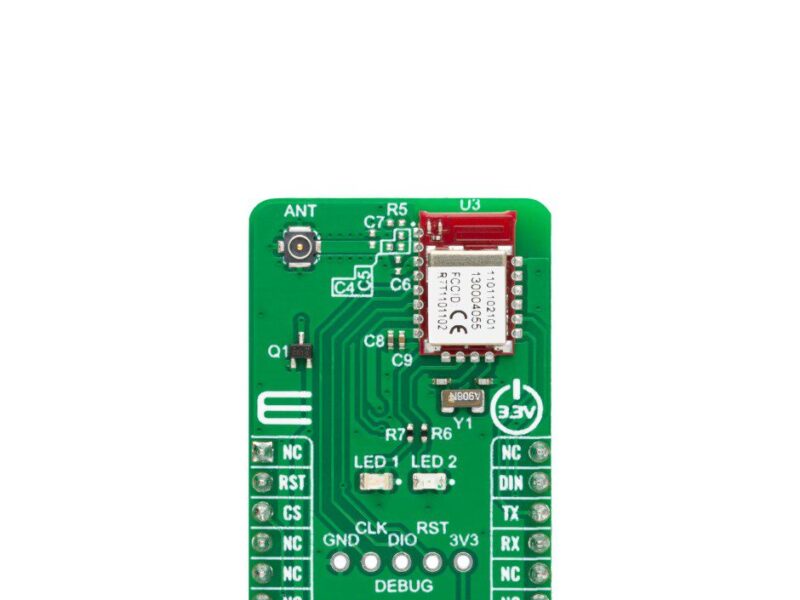

Wirepas Click is based on the WIRL-PRO2 Thetis-I, a Wirepas Mesh Protocol radio module from Würth. The module transmits data securely and reliably in the license-free 2.4 GHz band, which is globally available and features both authentication and encryption mechanisms.

The WIRL-PRO2 Thetis-I module features small dimensions comparable to a nano-SIM card (8 mm x 12 mm), including an onboard PCB antenna, suiting small-form-factor design. The module works in a frequency range of 2402 up to 2480MHz with a data rate of up to 1Mbps and is based on nRF52840, a 32-bit ARM Cortex-M4 microcontroller from Nordic Semiconductor.

It is accompanied by 1MB of Flash and 256KB of RAM. It has a printed antenna with a smart antenna configuration (2-in-1 module), which allows up to +6dBm of transmit power and -92dBm sensitivity. The connectivity can be even better with an external one attached to the onboard N.FL connector from a vast MIKROE offer.

Wirepas Click can work as a beacon because of its very small power consumption. For this purpose, it is equipped with a backup battery. In addition, there are two user-configurable indication LEDs, LED1 and LED2 (blue and green). In addition, the Wirepas Click is also equipped with an unpopulated header for debugging purposes, allowing direct communication to the Wirepas microcontroller.

“We launch three or four new Clicks every week. We also offer standardized MCU and display solutions, and our aim with all these development tools is simply to fast-track design. Don’t reinvent the wheel, don’t pay for expensive, singular design tools, get to market faster.”

Click boards use the mikroBUS modular prototyping add-on board standard, allowing design engineers to change peripherals easily, cutting months off development time. Any Click board can be connected to the microcontroller or microprocessor on a main board. Many leading microcontroller companies including Microchip, NXP, Infineon, Dialog, STM, Analog Devices, Renesas and Toshiba now include the mikroBUS socket on their development boards.
