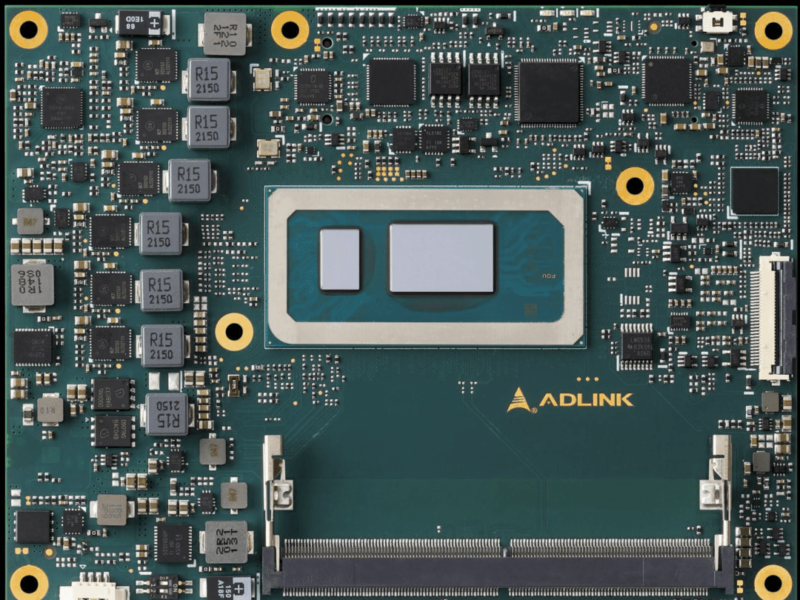

COM Express adds high speed serial support for USB4, PCIe4.0
PICMG has updated the COM Express specification to support high-speed serial interfaces such as PCIe Gen 4 and USB4.
The interfaces supported by COM Express 3.1 will boost its role as a Computer-on-Module (COM) standard for performance-rich client systems.
To support such high-speed signaling, an updated 16 Gbps connector has been specified across the family’s Type 6, 7, and 10 pinouts. SATA Gen 3 signal integrity and loss budget information have also been added for each Type.
These improvements join pinout-specific upgrades including optional USB4 (Type 6), MIPI-CSI connectors (Types 6, 10), SoundWire (Types 6, 10), as well as an additional general-purpose SPI interface (Types 6, 10). A CEI signaling-enabled 10 GbE interface and IPMB management interface are also now defined in the Type 7 pinout as part of COM.0 R3.1.
- Module jumps to 11th gen Core processors
- Base module comes with latest Xeon or Tiger
- Module is built around AMD’s V1000/R1000 SoC
“The PICMG COM Express specification just had its 17th anniversary. During this time, the specification has been updated to support the latest interfaces while focusing on maintaining backwards compatibility. Revision 3.1 is no exception,” says Jeff Munch, CTO of ADLINK Technology and Chairman of the COM Express subcommittee.
“In the latest release of the COM Express specification, the subcommittee has added support for PCI Express Gen 4, USB4, and newer 10G side-band interfaces while maximizing backwards compatibility.”
COM Express Revision 3.1 Type 6 and Type 10 hardware is fully backward compatible with 3.0 modules and carrier boards, while Revision 3.1 Type 7 modules are backward compatible apart from 10GBASE-KR Ethernet side-band signals and a second PCIe reference clock not included on R3.0 modules.
www.picmg.org/openstandards/com-express
