W and D band testers for early 6G and sub-THz research
Rohde & Schwarz is launching three test systems for W and D band applications for 6G and sub-terahertz research.
The R&S SFI100A wideband IF vector signal generator, the R&S NRP170TWG thermal power sensor and the R&S FE110ST/SR TX/RX frontends all enable researchers to characterize devices and circuits for beyond 5G and 6G mobile communications as well as the novel sensing and automotive radar applications in the W band (75 GHz to 110 GHz) and D band (110 GHz to 170 GHz)
- R&S, Nvidia team for AI-enabled 6G wireless receiver
- R&S teams for THz 6G research in France
- R&S teams for 6G RF test
The R&S SFI100A wideband IF vector signal generator was developed to meet bandwidth needs for demanding applications, such as early 6G research, high capacity wireless backhaul, fixed wireless access, sensing and automotive radar.

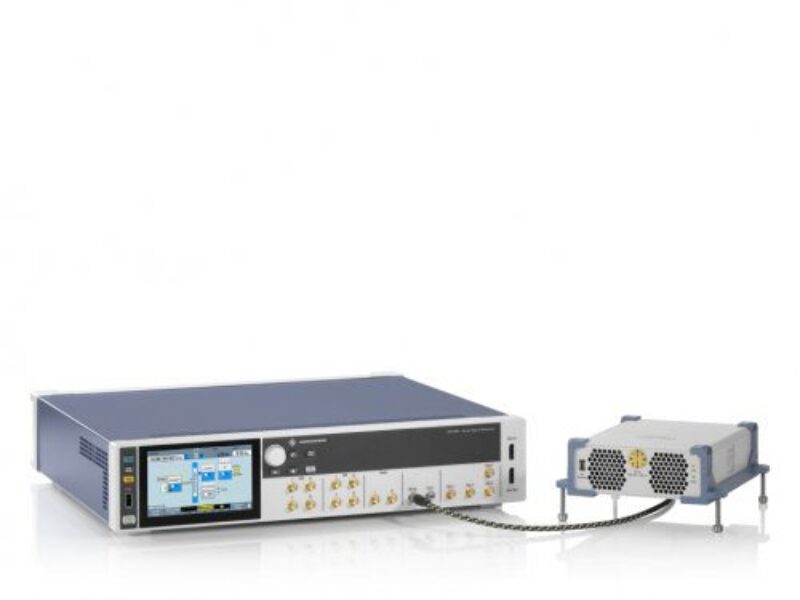

The compact instrument has a very wide RF modulation bandwidth of up to 10 GHz and generates fully calibrated IF signals. The R&S SFI100A connects to the R&S FExxxST up-conversion frontend to cover different frequency ranges and provide full control of the frontend, letting the solution act as a single instrument.
In addition to the IF interface, the R&S SFI100A also has analog IQ outputs, ideal for wideband signal generation in the baseband. At the EuMW, Rohde & Schwarz will show the R&S SFI100A combined with the R&S FSW50 signal and spectrum analyzer and R&S FE170ST/SR TX/RX frontends to upconvert and downconvert signals, and the R&S NRP170TWG thermal power sensor for the D band. Together, the instruments are a complete and streamlined wideband D band communication testing solution.
The R&S NRP170TWG(N) includes precision measurement of power levels in the frequency range from 110 GHz to 170 GHz. The sensors come in two models; the R&S NRP170TWG (connected via USB) and the R&S NRP170TWGN (connected via USB and LAN) and will be the only plug & play power sensors on the market for D band measurements.
The specification includes a dynamic range from –35 dBm to +20 dBm and excellent impedance matching to be the only RF power sensors on the market for the D band that meet mass production requirements.
The R&S FE110ST/SR TX/RX frontends extend the frequency range of signal sources such as the R&S SMW200A vector signal generator or the new R&S SFI100A wideband IF vector signal generator as well as the R&S FSW signal and spectrum analyzer to cover the W band.
