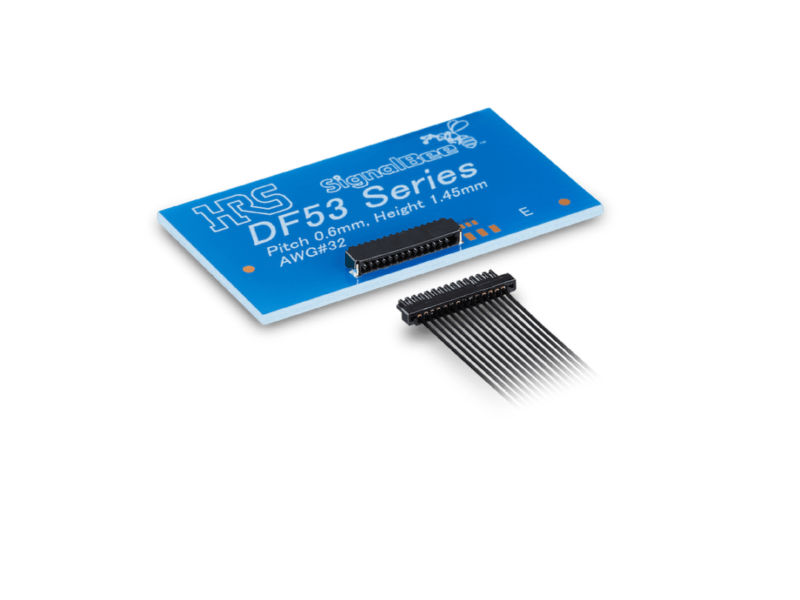

Hirose launches industry’s smallest 0.6mm crimp power connector
Hirose has expanded its SignalBee smaller wire-to-board connector with the smallest crimp system in the industry.
The DF53 has a height of 1.45 mm and a depth of 3.55 mm with a 0.6mm pitch to bring power to wearable battery connections.
The crimp connector supports up to 1.3A of current max when using two positions for power. It has a high-strength lance design to prevent cable disconnect during wiring and a double lock design with friction and contact for a high retention force.
- Harting and Hirose team on single pair Ethernet connectors
- Flexible flat cable connector has 0.4mm pitch
The DF53 Series single row connector uses a box-shaped contact design the ensures contact stability from above and below. The box-shaped contact on the cable side also prevents deformation when handling the cable assembly.
The single row crimp connector series is available in a 14 position version that allows mating conditions to be checked.
“The DF53 Series continues the SignalBee connector legacy of combining compact size and high signal performance with high contact reliability and durability. The low-profile DF53 Series connector enables OEMs to reduce the size of end devices,” said Pete Lais, Assistant Vice President of Product Management for Hirose Electric Americas
More details are on the DF53 series page
