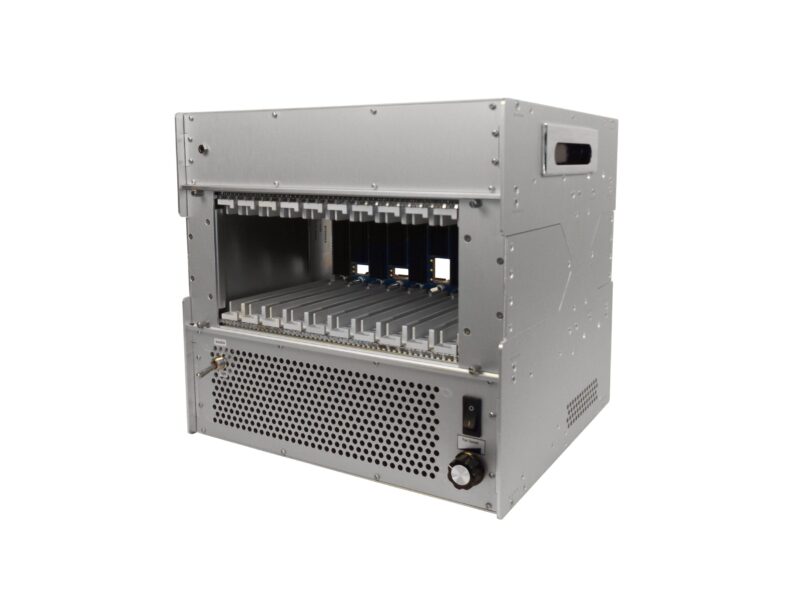

Ten slot 3U development chassis for OpenVPX designs
The OpenVPX chassis platform features removable sidewalls, allowing the open frame enclosure to be optional fully enclosed. The 10-slot backplane has clocking and VITA 46.11 system management connections per SOSA requirements as well as multiple VITA 67.3c and VITA 67.3d cutouts for RF interfaces through the backplane for 3U OpenVPX boards.
The speed of the backplane supports 40GbE and PCIe Gen3 signals with high-grade PCB material and back-drilling. Pixus can also support backplane design speeds to 100GbE and beyond. Other design options of the development chassis include a switch to go from Pixus’ modular fixed PSU to a VITA 62 power supply and card guides for conduction-cooled boards.
Pixus develops a range of OpenVPX backplane and chassis platforms designed for SOSA implementations that provides a standard configuration with short lead-times and reduced costs in commercial, development, and MIL rugged formats. The company also provides IEEE and Eurocard components for the embedded computer market.
